Product introduction:
Using electronic electric loading, high precision sensor, with a unique closed loop control system, every gear force is automatically compensated.
Using touch screen interface, menu structure simple operation.
With digital encoder eyepiece structure, measure D1, D2 value, LCD directly display hardness value and D1, D2 value.
Automatic turret, testing head and objective lens automatic switch to each other, test point automatic positioning accurate, automatic loading, automatic unloading.
Meet standard
GB/T4340, ASTM E92
Technical parameters:

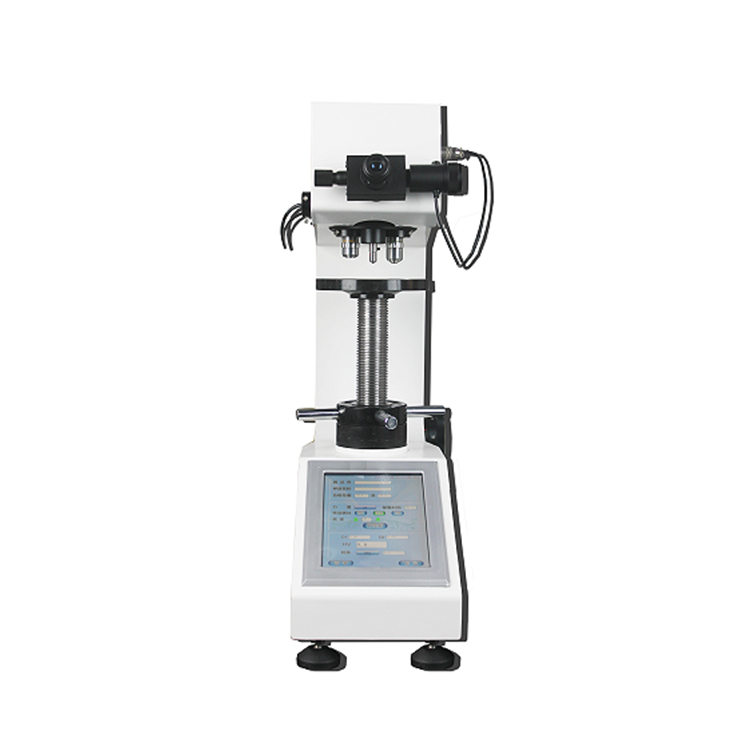

Model:HVS-5/10/30/50ZTG
Test force:0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf(9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N),10.0Kgf(98.0N) 30.0 Kgf (294N) 50.0Kgf(490N)
Data output: LCD display readout, save to U disk in Excel format directly
Load holding time of test force:1~99s
Size:580*190*700mm
The weight of the:About 55 kg
