Application Fields:
Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.
Specifications:

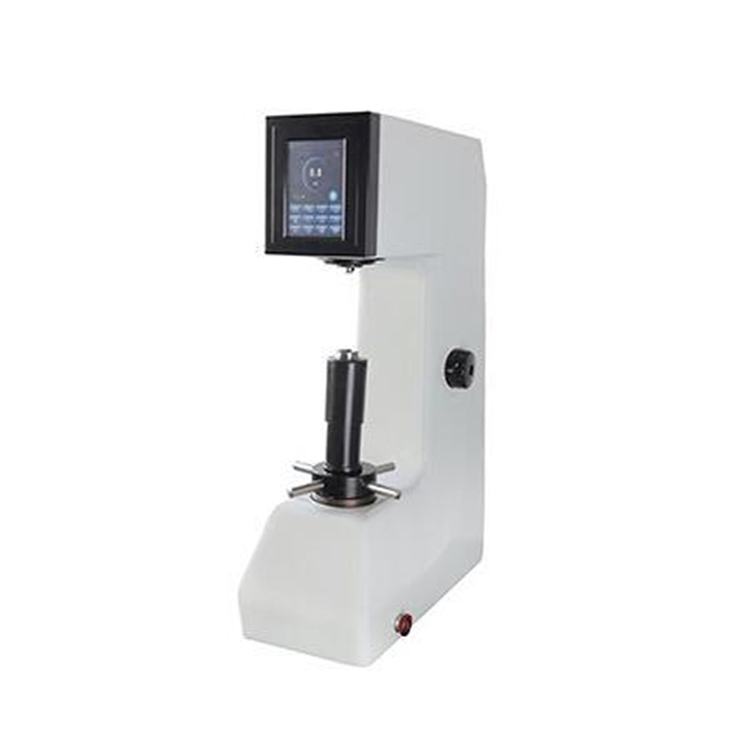

Model: HTR-150T
Indication Of Hardness Value:Touch Screen
Data output:Built-in printer, RS232
Preliminary Test Force: 98 N.07N
Total Test Force: 588.4N, 980.7N, 1471N (60, 100, 150kgf)
The Distance Between Pressure Head Center And The Wall: 165mm
Hardness Resolution: 0.1HR
Dimensions(mm):220*510*694
Weight: 90kg
Main features:
