Metallographic Cutting Machine

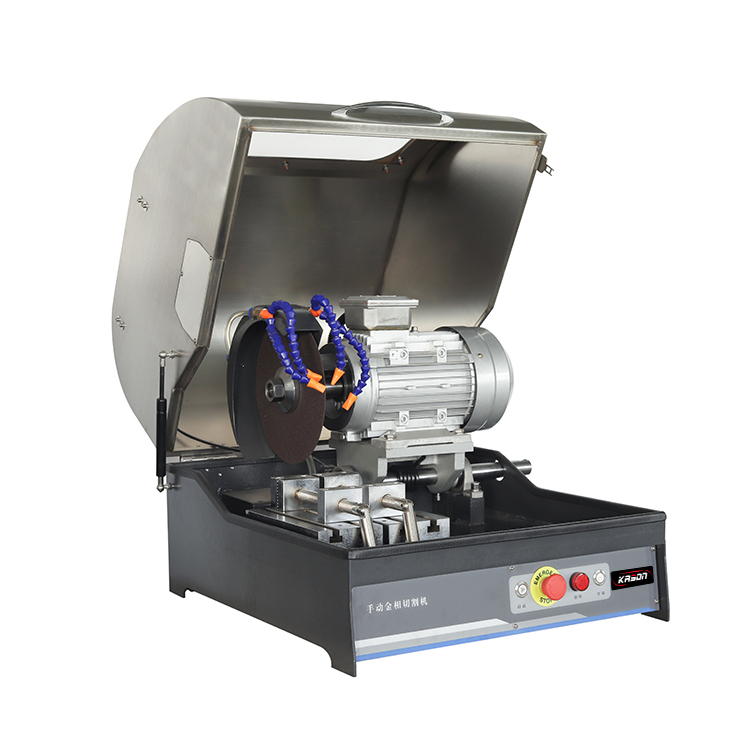

KSCUT-80S Metallographic Specimen Cutting Machine

Description

The machine can cut the samples of metal and non-metal materials, so as to observe metallographic and petrographic structure of the materials.

Share With:

We're here to help:
Easy ways to get the answers you need.

Send E-mail Chat Now

Introduction:
The machine can cut the samples of metal and non-metal materials, so as to observe metallographic and petrographic structure of the materials.
Its cooling device uses well-formulated cooling liquid to take away the heat during cutting, thus preventing the damage caused by overheat of the sample.
The machine,easy to use,safe and reliable,is an indispensable sample preparation equipment for the labs of plants, research institutes and universities and colleges.

Technical specifications:
★ Model: KSCUT-80S
★ Power supply : 380V, 50Hz (three phases)
★ Rotating speed of main shaft : 2800rpm
★ Max. cutting diameter :  ø80mm
★ Sand wheel specification : 250x2x32mm
★ Motor : 3.0 KW
★ Dimensions : 650x715x780mm
★ Weight : approx. 117kg
★ Cutting modes: Manual
★ Cooling tank: 50L
