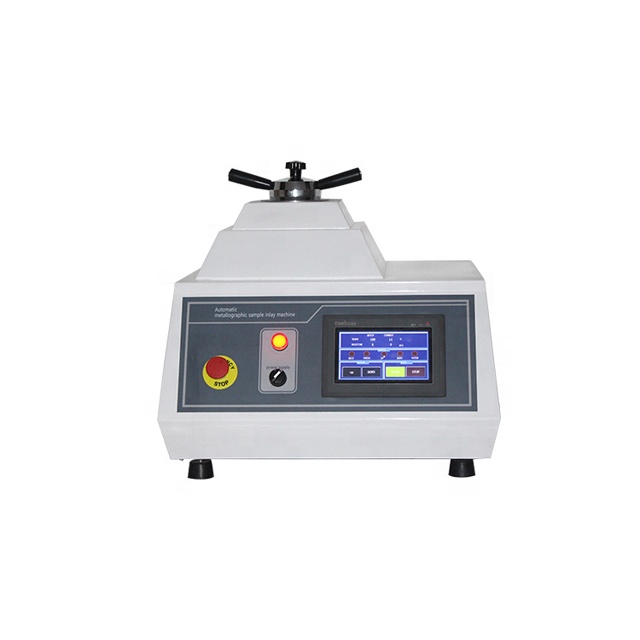

METPRESS-5A Automatic Metallographic Specimen Mounting Press

Metallographic Mounting Presse
Main features:

1.Application:

METPRESS-5A Automatic Metallographic Specimen Mounting Press is a kind of full automatic mounting

press, equipped with in-out water cooling system.

It is suitable for the heat mounting (thermohardening & thermoplastic) for all kinds of materials.

After the parameters such as heating temperature, heat preserving time and applied force etc. are set

up, put the specimen and mounting material into the machine, close the cover and press the start

button,then the machine will finish the job automatically.

It is not necessary for the operator to be on duty.

According to different requirements of the material,there are four kinds of moulds that can be

chosen to meet the demands at will. Also it is available to prepare two pieces of specimens at the

same time, the capacity is doubled.

2.Technical Parameters:

MODEL

METPRESS-5A

Sample diameter

Φ25mm,Φ30mm,Φ40mm,Φ50mm (Choose two)

Heating temperature

35-200

Hold Time

1~99 min

Automatic cooling time

0~60 min

Cooling method

Water

Power

1650W

Power supply

Single phase AC 220V, 50Hz

Dimension

455× 475× 430 (mm)

Net weight

50kg

Gross weight

62kg
