Product overview

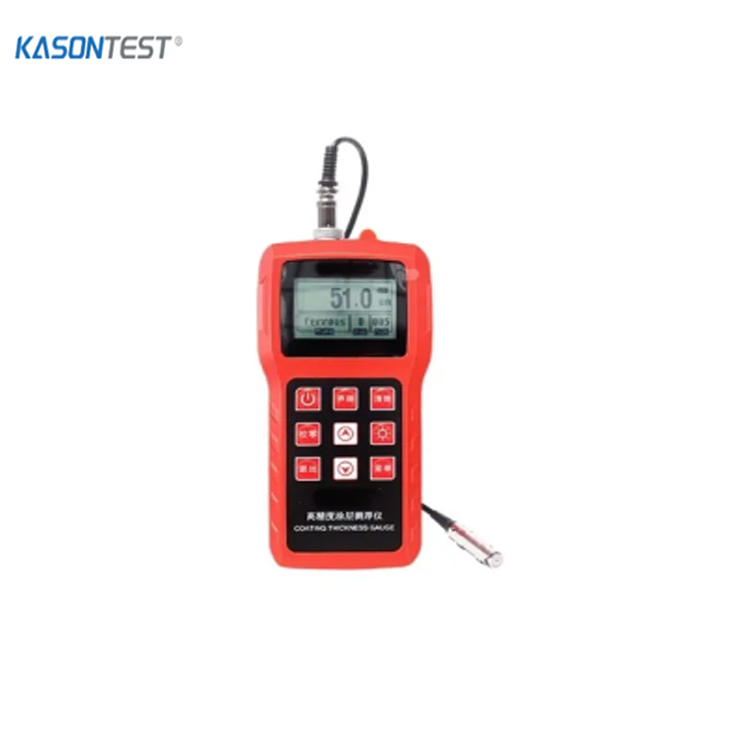

As a portable coating thickness measuring instrument, it can quickly, no damage, precision, and conduct the measurement of coating thickness. It has the advantages of wide measurement range, fast measurement speed and high measurement accuracy. It is mainly used in shipbuilding, coating industry, spraying process, electroplating industry, steel structure, metal surface, aluminum profile, chemical industry, engineering field and laboratory measurement. The needs of multiple measurements can be met by using different test heads.
Technical parameters
Ø Measuring range: (0~1250) μm (F1, N1 probe) F400 probe can detect tiny workpieces, F10 probe can reach 10mm;
Ø Resolution: 0.1μm (F1, N1 probe)
Ø Indication accuracy: ±(2%H+1) μm; H is the thickness of the measured coating
Ø Display method: 128*64 dot matrix LCD
Ø Storage capacity: Can store 5 groups (up to 100 measurement values per group) of measurement data
Ø Unit system: Metric (μm), Imperial (mil), freely convertible
Ø Working voltage: 3V (2 No. 5 alkaline batteries)
Ø Continuous working time: more than 200 hours (without backlight)
Ø Communication interface: USB communication interface, can be connected to PC Machine connection, communication
Ø Dimensions: 115mm×67mm×31 mm
Ø Machine weight: 340g
