Product Overview:

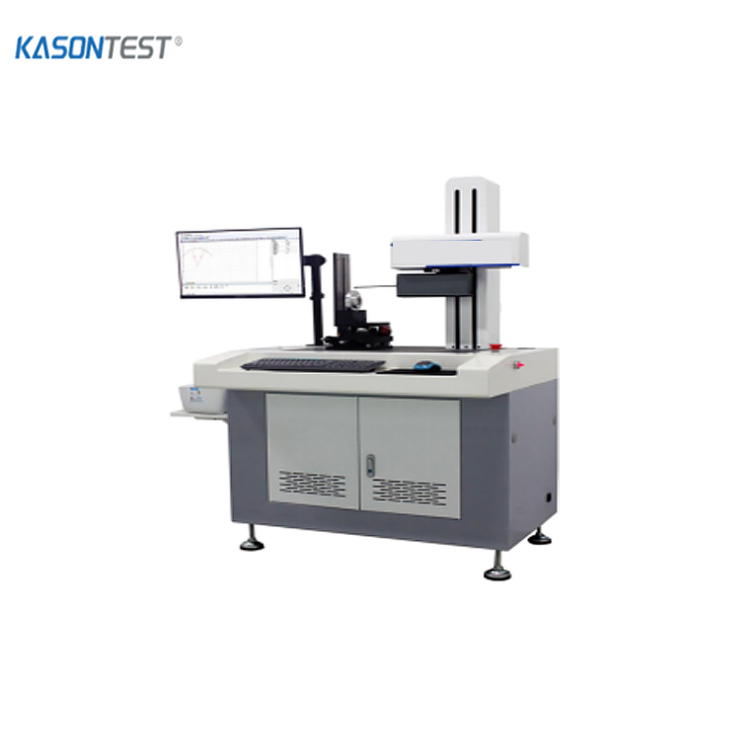

KASON-RP150 is an integrated measuring machine that combines surface roughness and contour measurement. It uses high-precision grating measurement system, high-precision grinding-grade guide rail, high-performance non-contact linear motor, high-performance roughness measurement module, high-performance computer control system technology, and perfect multi-functional software to measure and analyze the surface roughness and contour of various workpieces. The equipment can measure various parameters such as the element line and cross-sectional profile parameters, surface waviness parameters, and roughness parameters of various mechanical parts. It can measure the straightness, inclination, angle processing, circle processing (distance from straight line to tangent line, distance from center to center of circle, arc radius, distance from intersection to center of circle, distance from center to straight line), point-line processing (distance from intersection to straight line, distance from intersection to center of circle, intersection of two straight lines, distance between intersections), logarithmic curve, groove width, groove depth, groove edge distance, groove center distance, inclination, horizontal distance, vertical distance and other shape parameters of various parts. Applicable to bearing industry, mechanical processing, automobile, motorcycle, precision hardware, precision tools, molds, cutting tools, optical components and other industries.
Main technical indicators:
|
Model Item |
KASON-RP150 |
|
|
X-axis sliding linear guide |
Movement accuracy |
≤0.5μm /80mm |
|
X-axis positioning grating ruler |
Resolution |
0.1μm |
|
Sensor |
Resolution |
0.02μm |
|
Origin |
Imported grating |
|
|
System resolution |
65536:1 |
|
|
Linear accuracy' |
≤±(1.5+|0.2H|) μm |
|
|
Arc |
≤±（2＋R/8） μm |
|
|
Angle |
≤±2 ′ |
|
|
Straightness |
≤0.8μm/100mm |
|
|
Roughness measurement |
||
|
Measuring range |
X-axis |
Ra：0.01 - 10μm |
|
Z1 axis |
±500μm |
|
|
Evaluation parameters |
Roughness evaluation parameters: Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Rmr, Rdq and Rmr (c); Waviness evaluation parameters: Wa, Wz, Wq, Wt, Wp, Wv, Wc, Wdc, Wsk, Wku, Wsm, Wmr and Wmr (c); Original profile evaluation parameters: Pa, Pz, Pq, Pt, Pp, Pv, Pc, Pdc, Pdq, Psk, Pku, Psm, Pmr and Pmr (c) |
|
|
Sampling length L |
0.08, 0.25, 0.8, 2.5, 8 (mm); |
|
|
Evaluation length |
According to GB/T10610-2009 standard; |
|
|
Indication error |
±5% |
|
|
Indication repeatability |
2% |
|
|
Contour measurement |
||
|
Measuring range |
X axis |
≤150m |
|
Z axis |
≤300mm(Can be adjusted according to user needs) |
|
|
Z1 axis |
≤40mm |
|
|
Workbench moving speed |
0.05-0.8mm/s (four gears, automatic speed adjustment) |
|
|
Working environment |
Working temperature: 10℃-30℃ (normal temperature) Humidity 20-80%RH No obvious vibration source |
|
|
Required power |
220V 50Hz 0.5Kw separate ground wire |
|
