Product Overview:

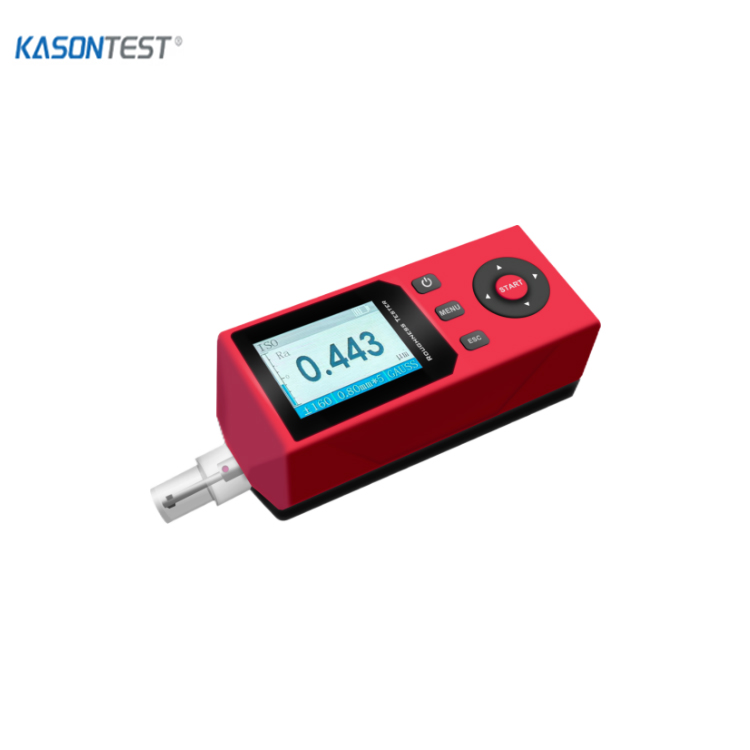

KASON-200Pro is a handheld surface roughness tester with mechatronics design, built-in high-performance ARM processor, and compatible with ISO, DIN, ANSI, JIS and other national standards. It has the characteristics of high measurement accuracy, wide measurement range, simple operation, easy to carry, stable operation, and large data storage capacity, low power consumption, automatic sleep, etc. The instrument is a sensor host integrated instrument with a built-in large-capacity polymer lithium battery, which can perform measurement work for a long time and can realize data measurement, display, storage, Bluetooth printing and other functions. Optional accessories such as curved surface sensors, small hole sensors, deep groove sensors, and measuring platforms are widely used in surface roughness detection in many fields such as automobile manufacturing, mechanical processing, metal processing equipment, printing and packaging, and mold casting.
Technical parameters:
|
Detection principle |
Inductive |
Maximum drive stroke |
≤ 1 7 . 5 m m |
|
Measuring range |
320 μm |
Measurement range |
Ra, Rq: 0.005μm ~ 32μm Rz, Ry, Rt, Rp, Rm: 0.02μm ~ 320μm Rsm, Rs: 1mm; Rmr: 0~100%; |
|
Needle tip radius |
5 μm |
Indication accuracy |
0.001μ m |
|
Needle tip material |
Natural diamond |
Indication error |
≤ ±8% |
|
Measurement force |
≤4mN |
Indication variability |
≤ 5% |
|
Stylus angle |
90° |
Power supply |
Built-in lithium-ion rechargeable battery/external power adapter |
|
Guide head longitudinal radius |
45mm |
Data output |
Bluetooth/USB |
|
Parameter measurement |
Ra、 Rq 、 Rz 、Rt 、Rp、 Rv 、 RS 、 RSm 、Rsk 、 Rku 、RPc 、Ry、Rmax、R3z |
||
|
Sampling length |
0.25mm，0.80mm，2.50mm |
||
|
Evaluation length |
1L~5L optional (L is the sampling length) |
||
|
Dimensions |
156mm × 55mm × 46.5 mm |
||
|
Instrument weight |
≦ 398 g |
||
|
Working environment |
Temperature: -20℃～40℃; Relative humidity: < 90%, no vibration and no corrosive media around |
||
|
Optional accessories |
Curved surface sensor, small hole sensor, groove sensor, deep groove sensor, extension rod, Bluetooth printer, measuring platform |
||
