Product introduction

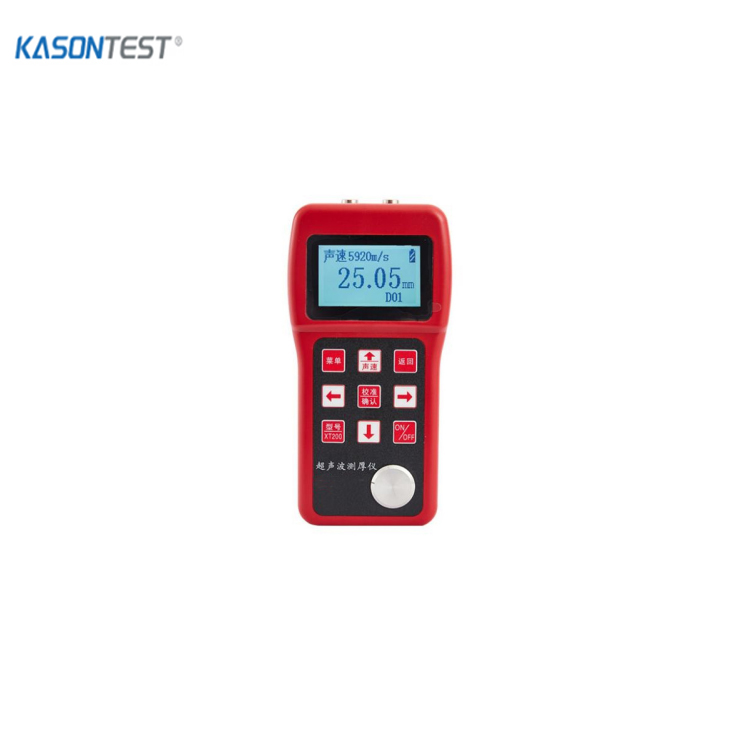

KASON-200 ultrasonic thickness gauge is a new generation of intelligent ultrasonic thickness gauge. It adopts the latest high-performance, low-power microprocessor technology and is based on the principle of ultrasonic measurement. It can measure the thickness of metal, glass, ceramics and other materials, and The speed of sound of the material is measured. It can measure the thickness of various pipes and pressure vessels in production equipment and monitor the degree of thinning after corrosion during use. The ultrasonic thickness gauge KASON-200 is equipped with different probes and can accurately measure cast iron, high temperature (up to 350°C), For special workpieces such as small pipe diameters, the KASON-200 display resolution is 0.01mm/0.1mm adjustable. It can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields.
Technical Parameters
1. Display method: white high-brightness LED backlight, LCD contrast adjustable;
2. Measuring range: 0.75~300mm (determined by the probe), metric and inch options are available;
3. Sound speed range: 1000~9999 m/s:
4. Resolution: 0.1mm/0.01mm optional
5. Indication accuracy: ±(0.5%H+0.04)mm H is the actual thickness of the object being measured;
6. Measurement cycle: 4 times/second in single-point measurement, 20 times/second in scanning mode;
7. Storage capacity: 500 sets of thickness measurement data can be stored.
8. Working voltage: No. 5 dry cell battery, 2 AA size alkaline batteries connected in series)
9. Continuous working time: about 100 hours (without backlight)
10. Overall dimensions: 150×74×32 mm
11. Overall machine weight: 238g
