Main features:
· Fully automatic operation for improved efficiency.
· User can preset:
Heating temperature
Holding time
Applied pressure
· Automatic completion of the mounting process after pressing the start button.
· No continuous operator supervision required.
· Multiple mold sizes available to meet different Testing requirements.
· Integrated water cooling system improves safety and working efficiency.
Product Overview
· Fully automatic hydraulic Metallographic specimen mounting press.
· Designed for metallographic sample preparation in laboratories and testing facilities.
· Equipped with an in/out water cooling system.
· Suitable for both thermohardening and thermoplastic mounting materials.
Main Applications

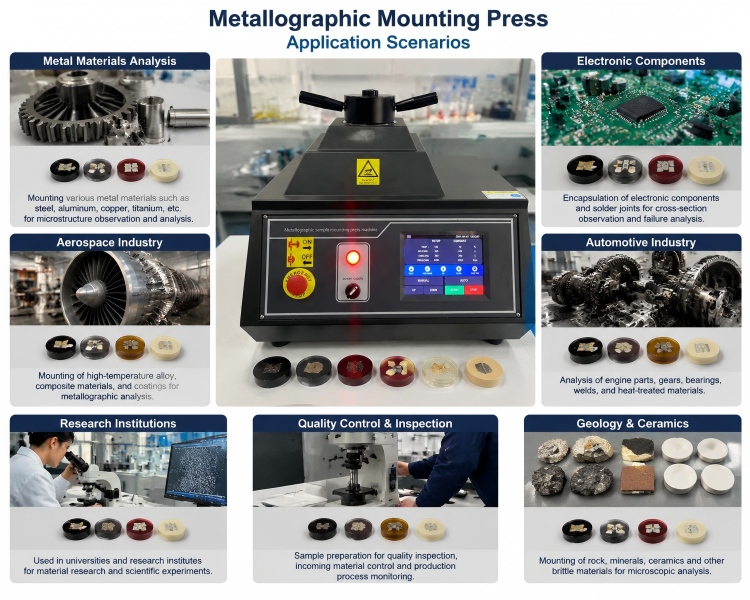

· Used for mounting metallographic specimens of various materials.
· Ideal for material analysis, quality control, and laboratory testing.
· Provides efficient and consistent sample preparation before grinding and polishing.
Technical Specifications
· Model: METPRESS-5HA
· Mold Sizes: Φ25 mm Φ30 mm Φ40 mm Φ50 mm
· Power Supply: 220V / 50Hz
· Maximum Power Consumption: 1650W
· Pressure Range: 0–2 MPa
· Temperature Range: 35–200°C
· Holding Time: 1–99 minutes 99 seconds
· Machine Dimensions: 580 × 625 × 580 mm
· Weight: 82 kg
· Cooling Method: Water Cooling
If you have interest, pls contact us. +8615910081986
