Main features:

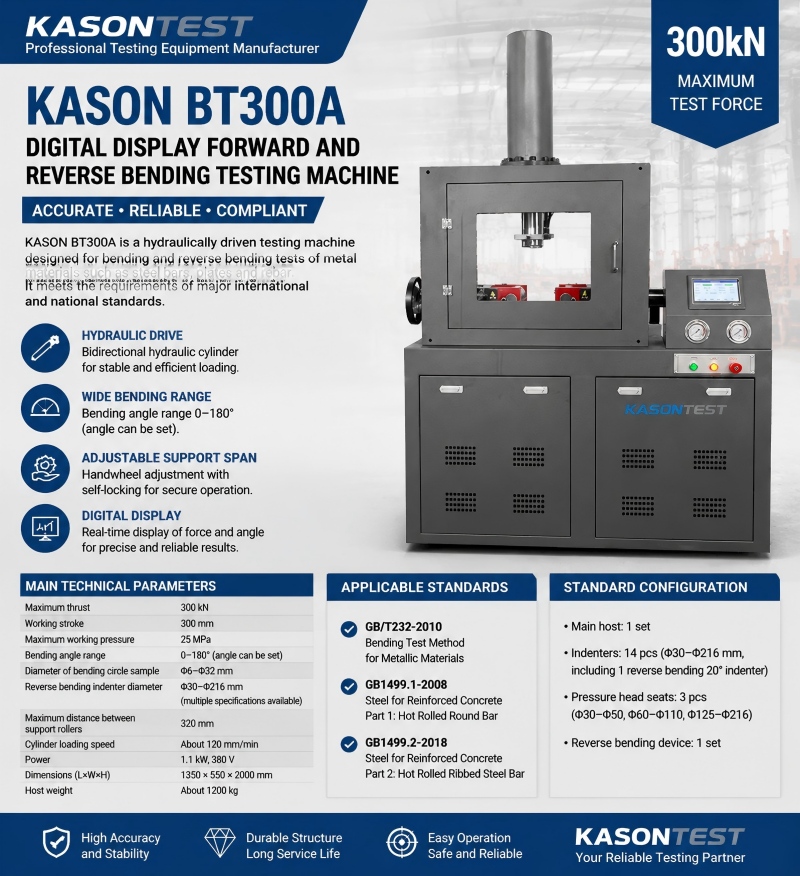

The KASON BT300A Forward and Reverse Bending Testing Machine developed by KASON is a hydraulic-driven system designed for evaluating the bending performance of metallic materials such as steel bars, plates, and rebar used in construction engineering.
This model delivers a maximum Test force of 300 kN and supports a bending angle range from 0° to 180°, allowing both forward and reverse bending tests. It is equipped with a bidirectional hydraulic cylinder, ensuring stable loading and efficient operation. The working stroke reaches 300 mm, and the system operates under a maximum pressure of 25 MPa. The cylinder loading speed is approximately 120 mm/min, providing consistent and repeatable test conditions.
One of the key features is its adjustable support roller spacing with a self-locking handwheel system, improving safety and flexibility during Testing. The machine also supports a wide range of specimen diameters from φ6 to φ32 mm and includes multiple indenter sizes from φ30 mm to φ216 mm for reverse bending applications.
The BT300A fully complies with important testing standards, including GB/T232-2010 “Metallic Materials Bending Test Method”, GB1499.1-2008, and GB1499.2-2018, ensuring reliable evaluation of reinforced steel performance.
In summary, the BT300A is a high-precision, durable, and standards-compliant solution for modern metallurgical and construction material testing laboratories.
