Main features:
Keywords: Metallographic Testing, Grinding and Polishing Machine, Automatic Sample Preparation, Material Analysis, Laboratory Equipment.

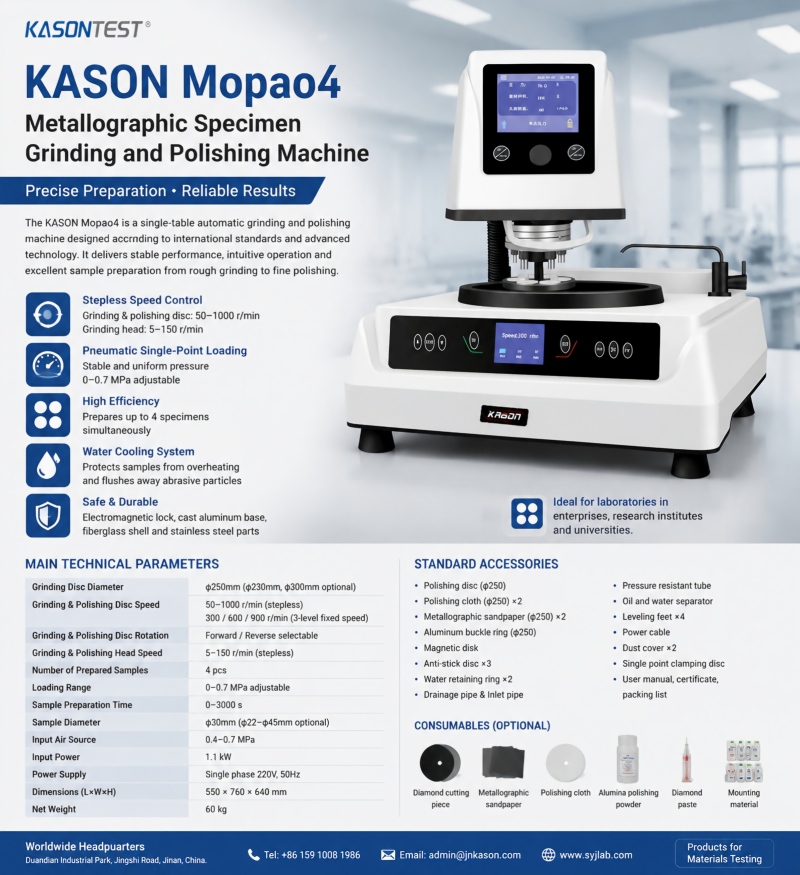

Metallographic Specimen Grinding and Polishing Machine, a high-performance solution designed for automatic preparation of metallographic samples. Developed according to international standards and advanced technologies, the machine provides efficient grinding and polishing from rough grinding to fine polishing.
The Mopao4 features a single-table structure, pneumatic single-point loading system, microprocessor control, stepless speed adjustment, and automatic electromagnetic locking function. The grinding and polishing disc speed can be adjusted from 50–1000 r/min, while the polishing head speed ranges from 5–150 r/min, ensuring precise and stable sample preparation.
Equipped with a water cooling system, the machine effectively prevents overheating damage to metallographic structures and removes abrasive particles during operation. It can prepare up to 4 samples simultaneously, with adjustable loading pressure of 0–0.7 MPa and preparation time of 0–3000 seconds.
Main Parameters: Grinding disc diameter φ250mm, sample diameter φ30mm (customizable φ22–φ45mm), power 1.1 kW, power supply 220V/50Hz, dimensions 550×760×640mm, and net weight 60kg.
Applicable Standards: Designed according to international metallographic sample preparation requirements, suitable for quality inspection laboratories, research institutes, universities, and industrial material testing applications.
