Application:
1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings
3. Glass, wafers, ceramics
Features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple Microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;
2. Industrial display LCD large-screen display can display Test method, test force, measuring indentation length, hardness value, converted hardness value, test force holding time, number of measurements and can be typed into year, month, date, test results and data processing, etc.
3. The cast aluminum shell is formed at one time, the structure is stable and does not deform, the pure white car paint is of high grade, the scratch resistance is strong, and it is still bright as new after years of use;
4. Can be directly measured by the actual measurement of the length to obtain the hardness value.
5. Observation-test-measurement position switching is done by the automatic turret.
Technical Parameters:
|
Model |

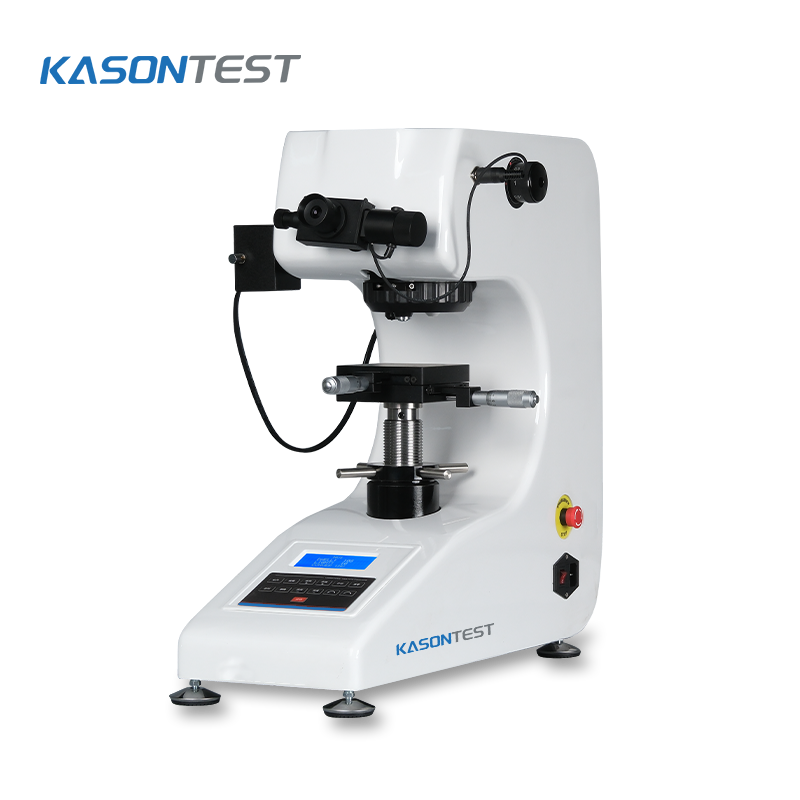

KASON HTV-1000ADP |
|
Turret |
Automatic |
|
Test force |
10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf(1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N) |
|
Hardness scale |
HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
|
Display |
Holding time (seconds), hardness value |
|
Loading control |
Automatic (load/hold/uninstall) |
|
Test force retention time |
5 ~60s |
|
Test force selection |
External selector knob, test force is automatically displayed on the LCD screen |
|
Objective magnification |
10×, 40× |
|
Optical channel |
Dual light channels (eyepieces and CCD camera channels) |
|
Optical system |
1.Automatic digital encoder; |
|
Hardness measurement range |
(5-3000) HV |
|
XY test platform |
Size (mm): 100×100 |
|
Maximum height of specimen |
110mm |
|
Maximum width of specimen |
85mm (distance from the center line of the indenter to the wall) |
|
Data output |
Optional Built-in mini printer interface (RS232 serial interface) |
|
Voltage |
AC220V/50HZ |
|
Weight |
35kg |
|
Dimensions |
540×200×530mm |
