Application：
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones,thin plastic sections etc.; Hardness Testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Features:

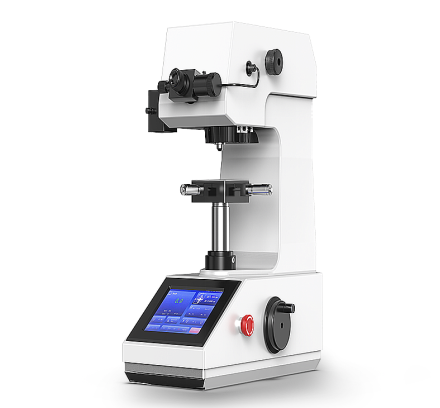

1. One-time casting aluminum machine body with car painting technology, structure more stable and appearance more decent.
2. Digital 10X eyepiece with inbuilt encoder, click the encoder machine will automatic get indentation diagonal length data D1 & D2, no need manual input data into machine, greatly improved Testing accuracy and working efficiency.
3. With large touch screen digital display, directly display hardness value, dwell time, conversion hardness value, etc.
4. Menu structure interface, easy operation.
5. With HV / HK Test function (if need HK test function, optional purchase Knoop diamond indenter and standard Knoop hardness blocks).
6. With built-in printer, test result can be printed out directly.
7. With RS232 communication port, machine can upgrade to semi-automatic or fully automatic type easily if needed in future.
8. Double optical path design. Reserved photo camera port, can add camera and work with Hardness Tester analysis and measuring software system (camera & software system for optional purchase).
Technical Parameter：
|
Model |
KASON HTV-1000AT |
|
Turret |
Automatic turret |
|
Test force |
10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf(1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N) |
|
Hardness scale |
HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
|
Measurement resolution |
0.01µm |
|
Exchange Scales |
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
|
Measuring range |
5~3000HV |
|
Data display |
5.6'' touch screen |
|
Data output |
Built-in printer and rs-232 interface |
|
Maximum height allowed for testing |
110mm |
|
Throat depth |
110mm |
|
X-Y table |
Dimension: 100x100mm Max movement: 25x25mm |
|
Force loading type |
Automatic( loading, dwelling,unloading ) |
|
Magnification |
Eyepiece: 10X electronic eyepiece with encoder; Objective: 10X (observation); 40X (measuring) Total: 100X (observation); 400X (Measuring) |
|
Test load dwell time |
1~99s |
|
power supply |
AC220V+5%，50-60Hz |
|
Machine size |
500*250*560mm; Net weight: 40kg |
|
Package size |
595*415*810mm; Gross weight: 50kg |
|
Standard |
ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2 |
