Product introduction:

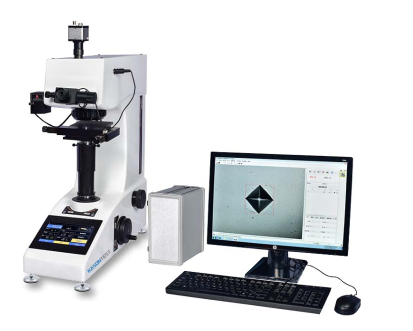

KASON HTV-M-AXYZF digital micro-Hardness Tester is an ideal high-end micro-Hardness Tester with lifting mechanism of optical cross guide rail, accurate force value and clear image.
Main features:
1. 8 inch touch screen interface, easy to operate;
2. During the Test, the indenter and the objective lens automatically switch to each other, and the test point automatically locates accurately.
3. Lifting mechanism guided by optical cross rail ensures guiding accuracy;Using rack and pinion two stage force transmission, can achieve fast and smooth force transmission;
4. LED light source, long life, no need to replace the bulb;
5. It can be equipped with a built-in camera for clearer images.
6. It can be calibrated according to standard hardness blocks or length scales, and automatically corrected according to high, medium and low hardness values, which makes the hardness value more accurate.
7. All test parameters and results are saved in EXCEL format on USB disk, which is convenient for data processing and inspection report output;
8. Various hardness values convert to each other;
9. Test setting parameters are protected by password;
10. English and other languages for choice;
11. Rs-232 interface for computer connection (optional);
12. Optional maximum test force 2kg.
Technical Parameter：
|
Model |
KASON HTV-M-AXYZF |
|
Test force |
10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N) |
|
Carried standard |
GB/T4340，ASTM E92 |
|
Minimum test unit |
0.01µm |
|
Conversion scales |
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
|
Hardness measurement range |
8~2900HV |
|
Loading method |
Automatic （loading、dwell、unloading） |
|
Turret |
Automatic |
|
Measurement eyepiece |
10X |
|
Magnification of objectives |
10X(measurement)、40X(measurement)（20X optional） |
|
Dwell time |
0~99s |
|
Maximum height of specimen |
100mm |
|
Distance from the center to the outer wall of the indenter |
110mm |
|
Data output |
LCD display |
|
Data storage |
Data stored as EXCEL in the U disk |
|
Power supply |
AC220V+5%，50-60Hz |
|
Software |
|
|
Camera |
1.3 million pixels |
|
Motor |
Stepping motor |
|
Automatic sample station movement
|
The software can change the speed flexibly by moving up the x-y axis.Click any point in the interface to select the point automatically, set the starting position of the straight line and the randomly moving position, and control the arbitrary movement in 8 directions of the automatic x-y displacement platform carrier by selecting the mouse, and adjust the speed and reset automatically. |
|
Size |
100 × 100mm |
|
Max. Movement distance |
25*25mm in the X-Y direction |
|
Min. Movement distance |
1mm |
|
Movement speed |
1-10mm/sec，adjustable |
|
Repeated displacement accuracy |
Within 4um |
|
Mode setting |
The software system can control the automatic carrier platform for programming movement： 1）measurement mode（Random A） Use this mode to load and read an arbitrary point. 2)Horizontal (X-axis direction), vertical (Y-axis direction) load and read 3）Measurement mode（Line Set A） Use this mode to press and read and surface in an angular direction (zigzag movement, that is, broken line movement of the depth measurement of the hardened layer) 4）measurement （Line Set B） Use this mode for regular intervals of loading and reading. 5）Track coordinate movement and other mobile programming methods |
|
Measurement process |
Measure one by one after all loads, while loading and measuring at the same time |
|
Indentation measurement method |
Automatic /manual |
|
Automatic measuring time |
About 0.3sec/1 indentation |
|
Hardness value correction |
It can corrected according to the standard hardness or length scale |
|
Data output |
The test report can be customized according to user requirements Through data processing software, the depth of hardened layer formed after continuous measurement of the sample can be displayed in tabular form It can easily output various measurement data, hardness value table, hardened layer depth, maximum value, average value, minimum value, etc |
|
Machine size |
540*260*650mm; Net weight: 50kg |
|
Package size |
820*480*960mm; Gross weight: 98KG (including computer) |
