Application:
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; Hardness Testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Features:
*Economic type, cost-effective, reliable, easy operation and intuitive;
*HV/HK scale, light, and dwell time can be set through operation panel;
*Put in the diagonal length and hardness value can be shown on LCD screen; no need to refer to sheet;
*Hardness value, measuring method, Test forces value, dwell time, number of measurement can be shown on LCD screen;
*in-put halogen lamp with long working life;
Technical Parameters:
|
Model |

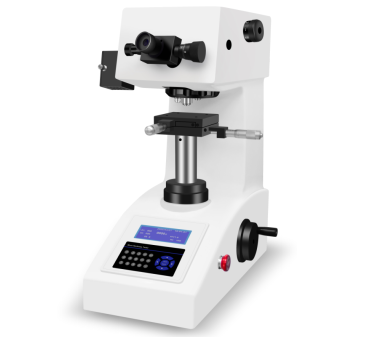

KASON HTV-1000 |
|
Turret |
Manual Turret |
|
Test force |
10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf(1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N) |
|
Hardness scale |
HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
|
Measurement resolution |
0.01µm |
|
Exchange Scales |
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
|
Measuring range |
5~3000HV |
|
Data display |
LCD screen |
|
Data output |
Built-in printer and rs-232 interface |
|
Maximum height allowed for Testing |
90mm |
|
Throat depth |
95mm |
|
X-Y table |
Dimension: 100x100mm Max movement: 25x25mm |
|
Force loading type |
Automatic( loading, dwelling,unloading ) |
|
Magnification |
Eyepiece: 10X; Objective: 10X (observation use); 40X (measuring use) Total: 100X (observation); 400X (Measuring) |
|
Test load dwell time |
1~99s |
|
power supply |
AC220V+5%，50-60Hz |
|
Machine size |
500*250*560mm; Net weight: 40kg |
|
Package size |
570*390*840mm; Gross weight: 60kg |
|
Standard |
ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2 |
