Application:
1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings
3. Glass, wafers, ceramics
Features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple Microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;
2. The industrial display screen can directly display the hardness value, convert the hardness, Test method, test force, holding time, measurement times, and the test process is intuitive and clear;
3. The cast aluminum shell is formed at one time, the structure is stable and does not deform, the pure white car paint is of high grade, the scratch resistance is strong, and it is still bright as new after years of use;
4. Observation - test - measurement of the position switch by the automatic turret
Technical Parameters:
|
Model |

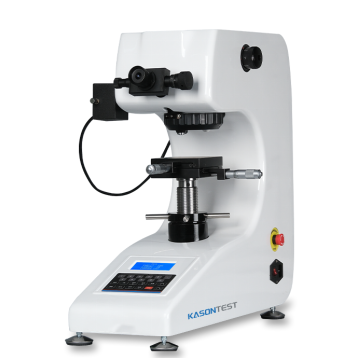

KASON HTV-1000AP |
|
Turret |
Automatic turret |
|
Test force |
10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf(1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N) |
|
Hardness scale |
HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
|
Display |
Holding time (seconds), hardness value |
|
Loading control |
Automatic (load/hold/uninstall) |
|
Test force retention time |
5 ~60s |
|
Test force selection |
External selector knob, test force is automatically displayed on the LCD screen |
|
Objective magnification |
10×, 40× |
|
Optical channel |
Dual light channels (eyepieces and CCD camera channels) |
|
Optical system |
1. Manual micrometer eyepiece; 2. The manual micrometer eyepiece can be changed 15 times, the total magnification is: 150X (observation), 600X (measurement) 3. Measuring range (μm): 200; 4. Resolution (μm): 0.25 |
|
Hardness measurement range |
(5-3000) HV |
|
XY test platform |
Size (mm): 100×100 |
|
Maximum height of specimen |
110mm |
|
Maximum width of specimen |
85mm (distance from the center line of the indenter to the wall) |
|
Voltage |
AC220V/50HZ |
|
Weight |
35kg |
|
Dimensions |
540×200×530mm |
