Application：
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones,thin plastic sections etc.; Hardness Testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Features:
1. One-time casting aluminum machine body with car painting technology, structure more stable and appearance more decent.
2. Digital 10X eyepiece with inbuilt encoder, click the encoder machine will automatic get indentation diagonal length data D1 & D2, no need manual input data into machine, greatly improved Testing accuracy and working efficiency.
3. With LCD screen digital display, directly display hardness value, dwell time, conversion hardness value, etc.
4. Menu structure interface, easy operation.
5. With HV / HK Test function (if need HK test function, optional purchase Knoop diamond indenter and standard Knoop hardness blocks).
6. With built-in printer, test result can be printed out directly.
7. With RS232 communication port, purchase our data transfer software via RS232 port can save test data to computer and by software can control machine (for Automatic turret machine)
8. Double optical path design. Both eyepiece and CCD camera path can work at same time. No need switch optical path. Camera can be install inside machine (camera for optional purchase).
Technical Parameter：
|
Model |

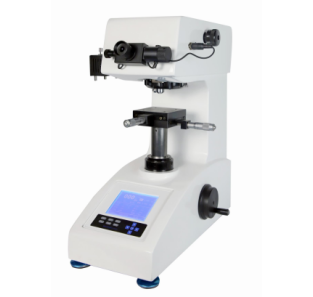

KASON HTV-1000D |
|
Turret |
Manual Turret |
|
Test force |
10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf(1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N) |
|
Hardness scale |
HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
|
Measurement resolution |
0.01µm |
|
Exchange Scales |
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
|
Measuring range |
5~3000HV |
|
Data display |
LCD display |
|
Data output |
Built-in printer and rs-232 interface |
|
Maximum height allowed for testing |
90mm |
|
Throat depth |
95mm |
|
X-Y table |
Dimension: 100x100mm Max movement: 25x25mm |
|
Force loading type |
Automatic( loading, dwelling,unloading ) |
|
Magnification |
Eyepiece: 10X; Objective: 10X (observation use); 40X (measuring use) Total: 100X (observation); 400X (Measuring) |
|
Test load dwell time |
1~99s |
|
power supply |
AC220V+5%，50-60Hz |
|
Machine size |
500*250*560mm;Net weight: 40kg |
|
Package size |
600*415*810mm; Gross weight: 49kg |
