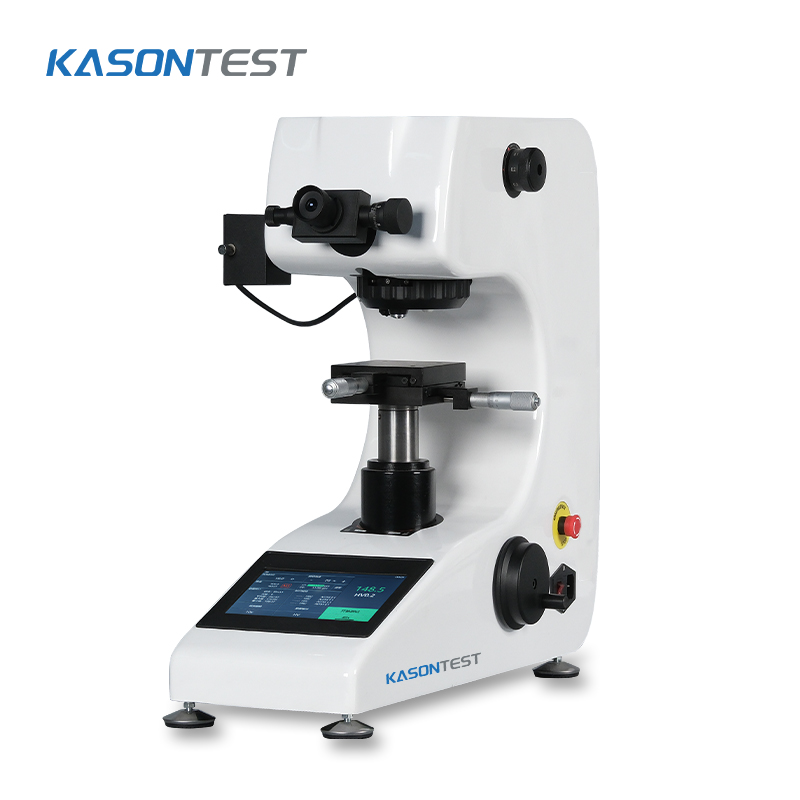

KASON HTV-1000TX Touch screen display Manual Turret Micro Hardness Tester

Application:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings
3. Glass, wafers, ceramics

Features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple Microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;

2. 7-inch LCD touch screen can display the hardness value, converted hardness, Test method, test force, brightness, holding time, measurement times, statistical data, upper and lower limits measurement range, test time and other test processes intuitively;

3. The cast aluminum shell is formed at one time, the structure is stable and does not deform, the pure white car paint is of high grade, the scratch resistance is strong, and it is still bright as new after years of use;

4. System comes with a calibration function, can manually adjust the input error calibration instrument;

 Adjustable range of optical system brightness: 0-100;

5, can store up to 100 sets of test data;

6. The unit of test force can be selected and converted manually. The conversion unit is: (Kgf, N)

7, Can display simultaneously: maximum, minimum, average, maximum error, sample difference;

8. Main interface can display 4 conversion scales at the same time, total of 18 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK , HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;

9. The upper and lower limit measurement range can be set and displayed on the main measurement interface;

10. The measuring scale can be converted into HK Knoop hardness;

11. With built-in printer, test data can also be exported to U disk via USB for analysis;

Technical Parameters:
