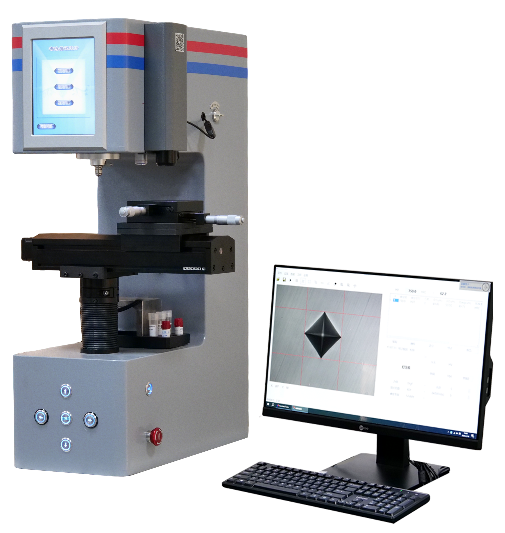

KASON HTBRV-i250SE intelligent Brinell, Rockwell and Vickers Hardness Tester
Product Introduction:
1. Scale: HV3-120, HR, HB2.5-250
2. Force range: 3-250KG
3. Objective: 2.5X, 5X, 10X, 20X
4. Brinell and Vickers measuring objectives are separate from the light source;
5. Brinell and Rockwell pressure Test completed, automatically move to the measurement position, and automatically measure, one click to obtain hardness value;
6. Manual movement of sample stage XY
7. Auto Focus (Option)
8. Automatically measure hardness values
9. All computer operations
10. Large sample space, customizable
11. Automatically export custom reports
12. Automatic connection to the cloud, measurement data and historical data auto-save (optional)
13. Automatically calculate the uncertainty of measurement values (option)
14. With three test methods - Brinell, Rockwell, and Vickers - and more hardness scale options.
15. It adopts electronic and electric loading, high-precision sensors and has a unique closed-loop control system.
16. Eyepiece structure with digital encoder, measure D1, D2 values, LCD directly displays hardness values and D1, D2 values.
17. The test force is automatically corrected, and each force level is automatically compensated, improving the force accuracy by an order of magnitude.
18. It can be calibrated according to standard hardness blocks or length scales.
19. Test force can be automatically corrected by standard dynamometer.
20. Rockwell and Vickers hardness values can be converted.
21. Touchscreen interface for easy operation.
22. Automatically convert hardness according to national standard /ASTM.
23. Set password protection Settings parameters, more sample and test information.
24. Measurement data USB drives are saved in EXCEL format for easy editing and processing.
Technical parameters:
|
Model |
KASON HTBRV-i250SE |
|
Hardness scale |
Brinell, Vickers, Rockwell, surface Rockwell |
|
Force value |
5 to 250kgf |
|
Brinell scale |
HBW1/ : 5, 10, 30kgf HBW2.5/ : 6.25, 15.625, 31.25, 62.5, 187.5kgf HBW5/ : 25, 62.5, 125, 250 KGF HBW10/ : 100, 250kgf |
|
Rockwell scale |
A, B, C, D, E, F, G, H, K, L, M, P, R, S, V 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W 15X, 30X, 45X, 15Y, 30Y, 45Y |
|
Vickers scale |
HV5, HV10, HV20, HV30, HV50, HV100, HV120kgf |
|
Measurement system |
Capture indentation images through an optical objective and a CCD camera, and measure in the LCD interface (option) Resolution: Length reading: 0.1 microns Depth reading: 0.2 microns |
|
Objective magnification |
2.5X, 5X (optional 10X, 20X) |
|
Camera |
500 pixels |
|
Data |
LCD screen, USB flash drive |
|
Test |
Auto-load, hold, unload |
|
Press head |
Rockwell diamond: 120° Rockwell ball indenter: 1/16" Vickers diamond: 136° Brinell ball indenter: 1mm, 2.5mm, 5mm, 10mm (Rockwell ball press options 1/8 ", 1/4 ", 1/2 ") |
|
Illumination system |
LED lamp |
|
enforce standards |
GB/T230, GB/T231, GB/T4340, JJG144-1999, GB/T18449, ISO 6508, ASTM E10, ASTM E92, ASTM E18, ASTM E384, ASTM E103 |
|
Total test force holding time |
1-99 seconds |
|
Sample specifications |
Maximum height of sample: 220mm Indenter - Outer wall distance (throat) :200mm Cylindrical specimens: The minimum diameter of cylindrical specimens on the outer surface is 4mm; |
|
Maximum test height |
Rockwell: 220, Brins-Vickers: 150mm |
|
Distance from the center of the indenter to the outer wall |
200mm |
|
Size |
500*260*750mm |
|
Weight |
About 70 kilograms |
|
Power supply |
AC220V+5%, 50-60Hz |
