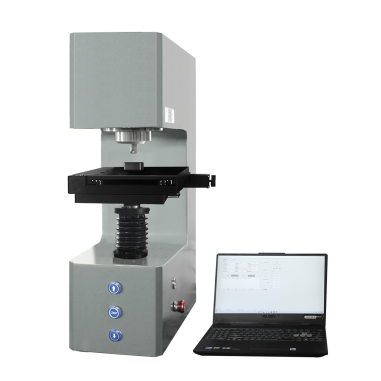

KASON HTR -i intelligent Rockwell Hardness Tester
Product Introduction
This product is a new generation of smart products, with measurement values available with just one click.
Key features and functions
1. Modern minimalist design.
2. A variety of Rockwell scales, HVT and HBT are available.
3. Fully automatic, high-precision force sensor, closed-loop force feedback control system
4. Worktable automatic lifting and lowering, anti-collision detection device and Z-axis retraction system.
5. Automatically apply the initial Test force and the main test force.
6. The worktable automatically rises, stops rising when the sample touches the indenter, automatically loads, automatically unloads, and automatically measures the hardness value.
7. Touchscreen interface, easy to operate, directly select the hardness scale, force value changes automatically.
8. Powerful data processing capabilities include: multiple hardness system conversions such as HR, HB, HV, qualified range Settings, automatic alarm for over-limit, input of Tester, sample name and other information.
9. Automatically correct each hardness scale into high, medium and low segments according to the standard hardness block.
10. The test force can be automatically corrected by a standard force gauge.
11. Ultra-high precision X/Y worktable (suitable for fully automatic models)
Repeat positioning accuracy :3 microns travel up to 200mm.
12. Set multiple measurement points within a range of 100mm * 100mm for multi-point fully automatic Testing and batch inspection (for fully automatic models).
13. Automatic measurement of end quenching curves for 6 samples (for full automatic model, optional).
14. Sample and test information, measurement data are saved on a USB drive in EXCEL format for easy editing and processing.
15. The database processing is powerful, including multiple hardness system conversions such as HR, HB, HV, setting qualified range, automatic alarm for over-limit, and information such as tester and sample name that can be entered. Measurement parameters and data are automatically saved to the database.
16. Qr code scanning, detection data cloud storage, data analysis, remote diagnosis and upgrade.Real-time detection data and historical data are displayed on mobile phones and computers.
17. Automatically calculate hardness value uncertainty (optional)
18. Automatically generate documentation required for CNAS review (optional)
19. Remote Diagnostics and Upgrades (Optional)
Technical Parameters
|
Name |
Smart Rockwell Hardness Tester |
Fully automatic smart Rockwell Hardness Tester |
||||
|
Model Model |
KASON HTR-150i-AZ |
KASON HTR-45i-AZ |
KASON HTR-150/45i-AZ |
KASON HTR-150i-AZXY |
KASON HTR-45i-AZXY |
KASON HTR-150/45i-AZXY |
|
Preliminary test force Preliminary test force kgf |
10 (98.07N) |
3.0 (29.4 N) |
10(98.07N) 3.0(29.4N) |
10 (98.07 N) |
3.0 (29.4 N) |
10(98.07N) 3.0(29.4N) |
|
Total test force Main test force kgf(N) |
60(588N) 100(980N) 150(1471N) |
15(147.1N) 30(294.2N) 45(441.3N) |
60(588N) 100(980N) 150(1471N) 15(147.1N) 30(294.2N) 45(441.3N) |
60(588N) 100(980N) 150(1471N) |
15(147.1N) 30(294.2N) 45(441.3N) |
60(588N) 100(980N) 150(1471N) 15(147.1N) 30(294.2N) 45(441.3N) |
|
Scales Ruler |
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T, 45W, 45X, 45Y |
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV 15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T 45W, 45X, 45Y |
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T, 45W, 45X, 45Y |
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV 15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T 45W, 45X, 45Y |
|
Standard Standard |
ASTM E18, GB/T230, ISO 6508, BSEN 6508 |
|||||
|
HVT |
- |
- |
- |
optional |
optional |
optional |
|
HBT |
- |
- |
- |
optional |
optional |
optional |
|
Dwell time Holding time |
0-99s |
|||||
|
HR value resolution Hardness value resolution |
0.1 HR |
|||||
|
Error of test force Test force error |
< 0.5% |
|||||
|
Data output Data output |
LCD display + live PC display |
PC |
||||
|
Data store Data Store |
Iot module/Bluetooth/Wired real-time transmission (choose one of the three) |
PC |
||||
|
Save in EXCEL format on a USB drive (optional) |
||||||
|
Exchange scales Convert scales |
Rockwell, Brinell, Vickers |
|||||
|
Stage Test stage |
Manual |
Manual |
Manual |
Automatic |
Automatic |
Automatic |
|
stage Size Sample stage size (mm) |
Diameter 100 |
Diameter 100 |
Diameter 100 |
150x150 |
150x150 |
150x150 |
|
stage stroke(mm) Sample stage stroke |
Rotatable |
Rotatable |
Rotatable |
50x50 |
50x50 |
50x50 |
|
XY sample stage repeatability accuracy (microns) |
/ |
/ |
/ |
1 |
1 |
1 |
|
Vertical capacity (mm) Maximum height of the sample |
210 |
200 |
||||
|
Throat depth Throat depth (mm) |
200 |
|||||
|
Motorized Z-axis Automatic Z-axis |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Anti-collision protection Z-axis rise collision protection |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Laser or LED guider Laser test point indication |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
|
Auto measurement of hardness value Hardness values are measured automatically |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Multi pot measurement Hardness distribution measurement |
- |
- |
- |
Yes |
Yes |
Yes |
|
Jominy test hardness curve End quenching curve |
- |
- |
- |
Optional |
Optional |
Optional |
|
Report editor Custom reports |
- |
- |
- |
Yes |
Yes |
Yes |
|
Data export Data output |
PC |
PC |
PC |
PC |
PC |
PC |
|
USB (optional) |
USB (Optional) |
USB (Optional) |
||||
|
OS operating system |
- |
- |
- |
Win 10 |
Win 10 |
Win 10 |
|
WiFi |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Blue tooth Bluetooth |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
|
Weight Weight |
70kg |
75 kg |
||||
|
Size, L*W*H(mm) Size (mm) |
510 * 230 * 810 |
510*230*810 +PC |
||||
