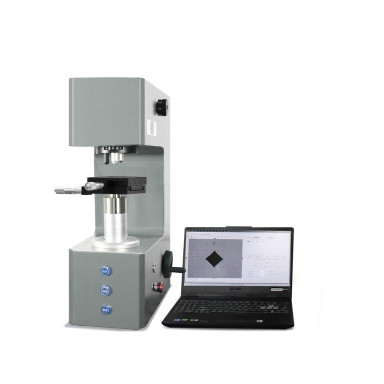

KASON HTV-i Series Intelligent (micro)Vickers Hardness Tester
Product Introduction
This product is a new generation of intelligent Hardness Tester, and the measured value can be obtained with one click.
Main features and functions
1. Modern minimalist design
Light source, camera, focus adjustment, and switching devices are all built-in.
2. Hardness measurement, one-click.
3. Auto Focus
Fast and accurate focusing New focusing algorithm sets new industry standards.
4. hardness measurement
Automatic and accurate measurement without manual positioning. New algorithm can detect indentations on uneven or scratched surfaces.
5. 3- station precision, automatic turret (6-station optional)
HV ( HK optional) pressure head, multi-objective lens configuration 10X, 40X (2.5X, 5X, 20X, 50X optional).
6. Ultra-high precision X/Y table
Repeat positioning accuracy: 1 micron stroke up to 100mm , standard 50mm,
7. Z-axis automatic control
Optical cross rail lifting mechanism , Z axis retraction system (optional).
Z-axis moving step: 0.04 micron.
8. Built-in 12- megapixel, high-definition industrial camera for clearer images.
9. Sample panoramic camera (optional)
Equipped panoramic camera generates sample panoramic images without image stitching.
10. QR code scanning , cloud storage of Test data, data analysis, remote diagnosis and upgrade.Mobile phones and computers display real-time detection data and historical data.
11. Automatically generate user-customized reports.
12. User login method: password, fingerprint, avatar, login is safe and convenient (optional).
13. User classification management to ensure reliable and efficient use of the system (optional)
14. Practical and powerful functional modules (options):Case Hardening Depth (CHD) of Carburized Case.
15. Automatic calculation of hardness value uncertainty (option)
16. Remote diagnosis and upgrade (option)
Main technical parameters
|
LOADS AND PPLICATIONS Force value and application |
|||||||
|
Model model |
KASON HTV-1i -AZ
KASON HTV-2i-AZ |
KASON HTV-1i -AXY
KASON HTV-2i -AXY |
KASON HTV-1i-AZ XY
KASON HTV-2i-AXY |
KASON HTV-30i-A Z
KASON HTV-50i-A Z
KASON HTV-120i-A Z
|
KASON HTV-10i- AXY
KASON HTV-30i- AXY
KASON HTV-50i- AXY
KASON HTV-120i- AXY |
KASON HTV-10i- AZXY
KASON HTV-30i- AZXY
KASON HTV-50i- AZXY
KASON HTV-120i- AZXY |
|
|
Load range (main loads) Force range |
10gf - 1 K gf ( 10 gf - 2 K gf ) |
0.3 - 10K gf / 0.3 - 30K gf 0.5 - 5 0 Kgf / 3-120 K gf |
|||||
|
Auto change load Automatic force switching |
Yes |
||||||
|
Vickers capability Vickers measurement |
Yes |
||||||
|
Knoop capability Knoop measurement |
Yes |
N/A |
|||||
|
Brinell capability (Optional) Brinell measurement (option) |
N/A |
Optional |
|||||
|
STAGES AND TURRETS Sample table and brick tower |
|||||||
|
XY-stage |
Manual |
Automatic |
Manual |
Automatic |
|||
|
XY-stage Size XY sample stage size (mm) |
100x 100 |
150x 150 |
100x 100 |
150x 150 |
|||
|
XY-stage stroke Max size:100 x100mm XY sample stage travel (mm) Maximum size :100x100mm |
30 x 30 |
50 x 50 |
30 x 30 |
50 x 50 |
|||
|
XY-Stage repeatability XY sample stage repeatability ( micrometers ) |
- |
1 |
- |
1 |
|||
|
Vertical capacity (mm) Maximum sample height (mm) |
170 |
160 |
170 |
160 |
|||
|
Throat depth (mm) Throat depth |
170 |
||||||
|
Motorized Z-axis |
Yes |
NO |
Yes |
Yes |
NO |
Yes |
|
|
Z-axisstep length (um) Z-axis step distance (micrometer) |
0.08 |
- |
0.08 |
0.08 |
- |
0.08. |
|
|
Motorized turret Automatic turret |
Yes |
||||||
|
Turret positions Number of turret stations |
3(6) |
||||||
|
W eight ( kg ) Weight (kg) |
42 |
||||||
|
Size, L*W*H(mm) ( not including PC ) Dimensions, depth*width*height (mm) (without PC) |
450*205*650 |
||||||
|
CAMERAS AND OPTICS Optics and photography |
|||||||
|
Objective Lens Objective |
10X, 40X (2.5X, 5X，20X, 50X) |
10X, 20X (2.5X, 5X, 40X, 50X) |
|||||
|
Evaluation camera resolution Measuring camera resolution |
12 MP |
||||||
|
Overview camera Panoramic Camera |
- |
Optional |
- |
Optional |
|||
|
Overview cam sample max. size(mm) Panoramic photography sample size (mm) |
- |
30*30 |
- |
30*30 |
|||
|
Overview camera resolution Panoramic camera resolution |
- |
12 MP |
- |
12 MP |
|||
|
Auto illumination Automatic brightness adjustment |
Yes |
||||||
|
Stage illumination Sample stage lighting |
Optional |
||||||
|
Lase guider Laser cross line positioning |
- |
||||||
|
SOFTWARE software |
|
|
|
|
|
||
|
Multiple user login methods Multiple user login methods |
- |
Optional |
- |
Optional |
|||
|
User classification and management User classification and management |
- |
Optional |
- |
Optional |
|||
|
Indentation measurement automatically Automatic hardness measurement |
Yes |
||||||
|
Edge detection Sample edge positioning |
- |
Optional |
- |
Optional |
|||
|
Mapping module Sample Shape Matching Module |
- |
Optional |
- |
Optional |
|||
|
CHD measurement Effective hardening layer curve measurement |
- |
- |
- |
- |
|||
|
NHD Nitride layer depth measurement |
- |
- |
- |
- |
|||
|
SHD Induction hardening depth measurement |
- |
- |
- |
- |
|||
|
FHD Laser quenching hardness depth measurement |
- |
- |
- |
- |
|||
|
Welding module Welding module |
- |
- |
- |
- |
|||
|
Hardnessvalue uncertainty Automatic calculation of hardness value uncertainty |
- |
Optional |
- |
Optional |
|||
|
Automatically generate CNAS review documents Automatically generate CNAS review documents |
- |
Optional |
- |
Optional |
|||
|
Remote diagnostics and upgrades Remote diagnosis and upgrade |
- |
Optional |
- |
Optional |
|||
|
K fracture measurement Fracture toughness measurement |
- |
||||||
|
Report editor Report Output |
Yes |
||||||
|
Data export Data Export |
Yes |
||||||
|
OS Operating System operating system |
W in 10 or above |
||||||
|
Wi-Fi |
Yes |
||||||
|
Blue tooth Bluetooth |
Yes |
||||||
