Application:
1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, Metallographic structure.
2. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
3. Glass, chip and ceramic material.
Features:

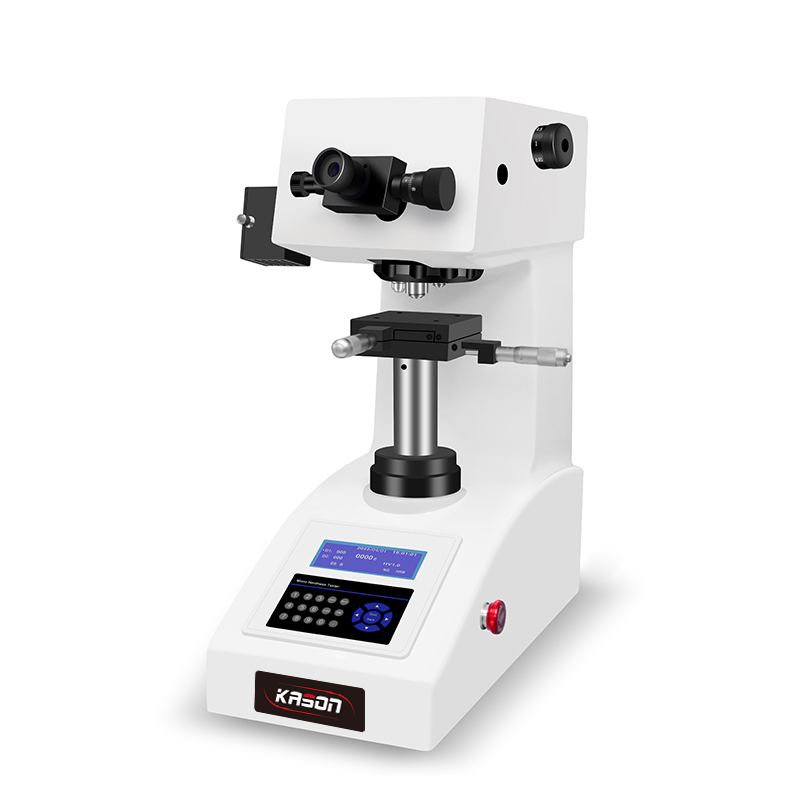

1. The Hardness Tester adopts LCD screen to display.
2. Such selections as the hardness scales HV or HK, various steps of Test force, dwell time can be operated on the operating panel.
3. The luminosity of light source can be adjusted without grades as well.
4. After input the D1 & D2 values measured form the eyepiece, the hardness value will display on the LCD screen directly.
Technical Parameters:
|
MODEL |
KASON HTV-5 |
KASON HTV-10 |
KASON HTV-30 |
KASON HTV-50 |
|
Turret Type |
Manual |
|||
|
Test Force |
0.3kg(2.94N), 0.5kg(4.9N), 1kg(9.8N), 2kg(19.6N), 3kg(29.4N), 5kg (49N) |
0.3kg(2.94N), 0.5kg (4.9N), 1kg (9.8N), 3kg (29.4N), 5kg (49N), 10kg (98N) |
1kg(9.8N),3kg(29.4N),5kg(49N),10kg(98N),20kg(196N), 30kg(294N) |
1kg(9.8N), 5kg(49N), 10kg(98N), 20kg(196N), 30kg(294N), 50kg(490N) |
|
Hardness conversion scale |
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HBS、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
|||
|
Min. Unit of measurement |
0.5μm |
|||
|
Test Mode |
HV/HK |
|||
|
Hardness Test Range |
5~3000HV |
|||
|
Force loading |
Automatic (loading, dwelling, unloading) |
|||
|
Objective Lens |
10X、40X |
|||
|
Eyepiece |
10X |
|||
|
Total Magnification |
100X (For Observation), 400X (For Measurement) |
|||
|
Test Force Dwell Time |
1~60s |
|||
|
Maximum Height |
175mm |
|||
|
Throat depth |
125mm |
|||
|
Power Supply |
AC220V±5％，50~60Hz(110V is available) |
|||
|
X-Y Testing Table (optional purchase) |
Dim.: 100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm
|
|||
|
Executive standard |
ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2 |
|||
|
Dimensions |
590*320*640mm |
|||
|
Weight |
70kg |
|||
|
Package size |
680*475*745mm |
|||
|
Gross weight |
90kg |
|||
