Applications and features
● The operation panel is simple and intuitive.
● The enclosed transparent protective cover and safety switch provide protection for the operator.
● The counterweight sliding loading system makes the operation more convenient and flexible and can minimize sample damage.
● Closed-loop control cutting to prevent overload from burning out motors, circuits, etc.
● It can automatically stop when the sample cutting is completed.
● Using imported diamond has the best effect.
Technical Parameters
Product name

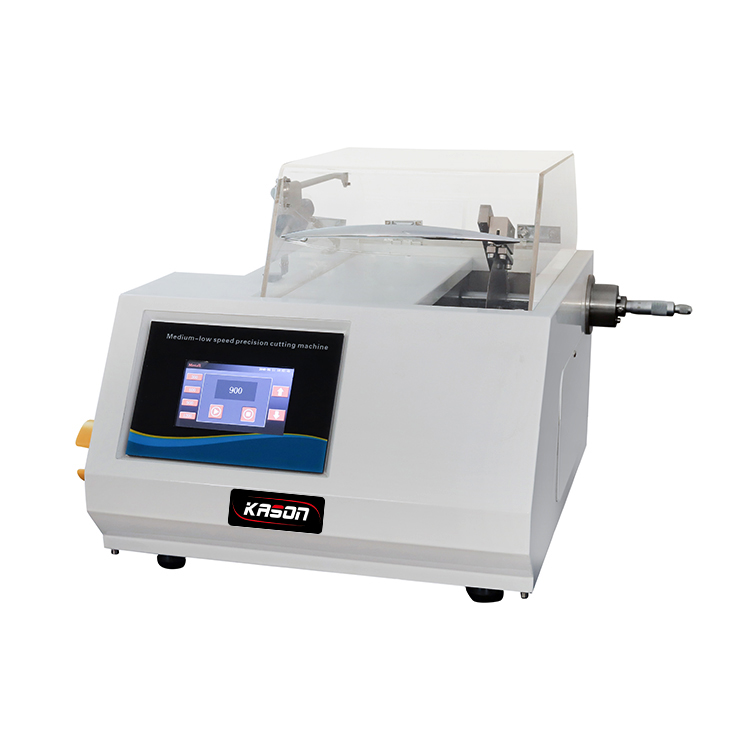

KASON CUT-15ZD
Cutting piece
Standard: 150x12.7x0.43mm（6inch）
Cutting positioning accuracy
0.01mm
Cooling device
Automatic circulation cooling of cutting fluid (the cutting blade drives water circulation cooling in the water tank)
Brushless DC motor
Power: 125W Speed: 0-1500rpm
Display
LED digital display
Emergency braking device
Emergency stop button
Dimensions and Weight
520*430*390mm,33kg
Packaging size and gross weight
720*610*560mm,61kg
Power supply
AC220V 50HZ
Main features:
