Applications

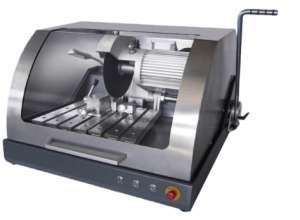

Model CUT-60G Metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine has stainless machine body and worktable, and it features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Features
● Stainless machine body and worktable
● Equipped with lighting lamp
● 60L water cooling system
Technical Parameters
|
Model |
KASON CUT-60G |
|
Maximum cutting diameter |
Ø60mm |
|
Grinding wheel specifications |
250 x 1.5 x 25.4 mm |
|
Spindle speed |
2800 rpm |
|
Cutting power |
2.4kw |
|
Dimensions and Net weight |
760*620*450mm,82kg |
|
Packaging size and gross weight |
Equipment: 830*720*600mm; water tank:710*540*470mm; Total weight: 140kg |
|
Power supply |
Three-phase 380V,50HZ |
