Application:

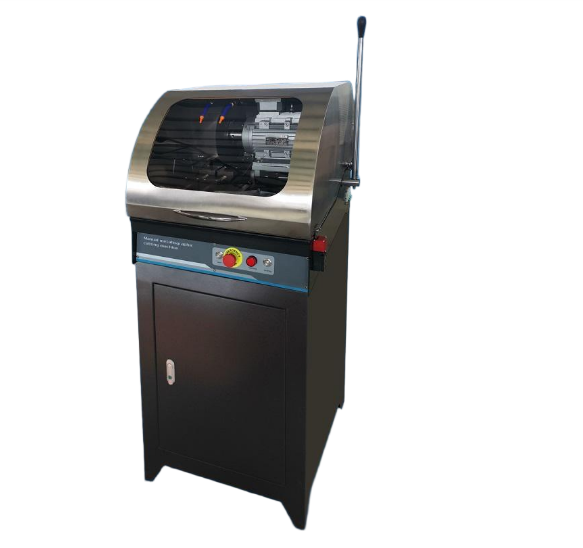

KASON CUT-80F Metallographic specimen cutting machine is equipped with stainless cover and it can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Features
● Stainless chamber cover
● Equipped with water cooling system
● Lighting system is optional
Technical Specifications
Model
KASON CUT-80F
Maximum cutting diameter
Ø 80mm
Cutting disc specification
250 x (1.5-2) x 32mm
spindle speed
2800rpm
Work table size
230 x 240 mm
Motor Power
3.0KW
Dimensions and Weight: approx.
740*680*1650mm,140 kg
Packaging size and gross weight
940*770*1710mm, 204kg
Power supply
380V,50HZ,3P
