Applications

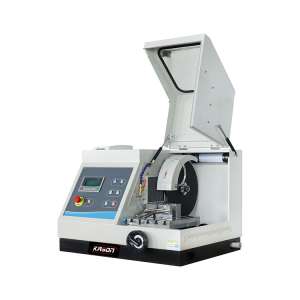

CUT-80Z manual / automatic Metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Features
● Various cutting data can be displayed on high definition backlight type LCD screen.
● Manual cutting and automatic cutting modes can be switched at will
● Large cutting chamber, tempered glass observing window
● Non-burning loss swing type cutting means, which improves the cutting quality
● Automatic withdraw function after cutting is finished
● Bidirectional feeding method increases the length of deep cutting
● Cutting speed: 2.25, 3, 4, 5, 7, 9, 12, 15mm/min.
● Equipped with large volume cooling liquid water tank.
Technical Parameters
Model
KASON CUT-80Z
Cutting chamber shell
Steel plate
Maximum cutting diameter
Ø 80mm
Platform moves in Y direction
275mm
Cutting table size
280*310mm
Cutting disc specifications
350*2.5*32mm
Cutting method
Manual / Auto
Feeding method
Any adjustment (Manual / Auto dual use)
Cutting speed
Maximum 1mm/s
Automatic cutting method
Intermittent cutting (metal workpieces) and continuous cutting (non-metallic workpieces)
Cutting distance
Set as needed
Reset mode
Automatic reset
Cooling system
Automatic (water cooling 2 channels)
Water tank capacity
50L
Spindle speed
2100rpm
3KW
Machine type
Desktop
Water tank dimensions and net weight
470*370*300mm,17kg
Water tank packaging size and gross weight
540*460*460mm,27kg
Dimensions and Net weight
887*795*600mm,210kg
Package Size and Gross weight
1100*940*800mm,210kg
Power supply
380V,50HZ,3P
Motor Power
