Applications:

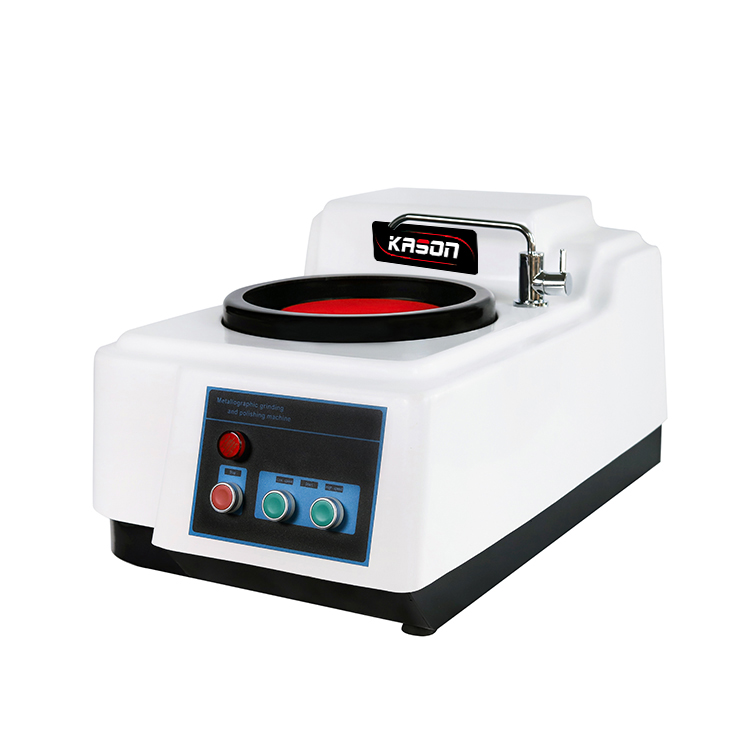

KASON Mopao 160 Dual-speed Metallographic specimen grinding and polishing machine is equipped with single disc and features two level constant speeds for grinding and polishing. It can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. It is the necessary metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Features
● Two-level fixed speed, speed control system optimized for grinding and polishing machines
● Easy-to-operate switches and knobs for easy operation
● Finely ground and surface-treated work disc to ensure smooth sample surface
● The integrally formed high-strength fiberglass material shell is sturdy and durable and will never rust.
Technical Specifications
|
Model |
KASON Mopao 160 |
|
Polishing disc diameter |
Ø203mm (Ø230mm/Ø250mm customized) |
|
Number of grinding and polishing discs |
Single disk |
|
Rotating speed |
300rpm, 600rpm |
|
Motor |
550W |
|
Dimension and Net weight |
500*910*475mm,35kg |
|
Package size and Gross weight |
915*530*490mm,49.2kg |
|
Voltage |
220V, 50Hz, Single phase |
