Application:

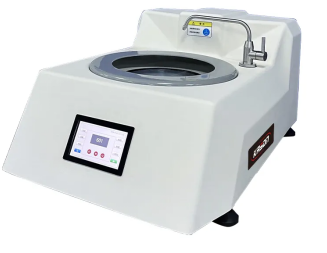

Mopao 160ETMetallographic specimen grinding and polishing machine is equipped with single disc and features stepless speed changing for grinding and polishing. It can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. By adjusting the transducer, it can realize the rotating speed of grinding and polishing disc adjustable from 50 to 600 rpm. This bring this machine with much more extensive applying and make it become the necessary metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges
Features
● Two rotating speeds, 50-1200 rpm(step-less speed changing) Or 150/300/450/600/900/1200 rpm(six-level constant speed) can rotate clockwise or counter-clockwise
● Touch screen operation, simple operation
● Real-time display of grinding and polishing disc speed
Technical Specifications
|
Model |
KASON Mopao 160ET |
|
Polishing disc diameter |
Ø203mm(Ø230mm/Ø250mm customized) |
|
Number of grinding and polishing discs |
Single disk |
|
Rotating speed |
50-1200 rpm(step-less speed changing) Or 150/300/450/600/900/1200 rpm(six-level constant speed) |
|
Diameter of abrasive paper |
Ø200mm (250mm can be customized) |
|
Dimension and Net weight |
750*500*350mm,40kg |
|
Package size and Gross weight |
790X550X440mm,53kg |
|
Power supply |
Single-phase 220V,50HZ |
