Applications

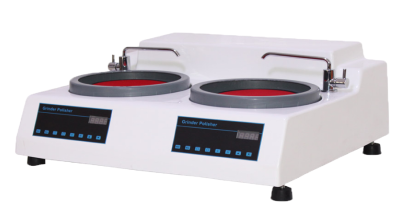

Mopao 2DE double-disc manual grinding and polishing machine integrates the functions of pre-grinding, grinding and polishing of Metallographic samples. It has strong power, low noise, durability and simple operation. It is an ideal grinding and polishing machine for enterprises and scientific research institutions.
Features
● Double discs and dual controls
● Easy-to-operate switches and knobs for easy operation
● Finely ground and surface-treated work disc to ensure smooth sample surface
● Integrated high-strength ABS material shell, sturdy and durable.
Technical Parameters
|
Model |
KASON Mopao 2DE |
|
Grinding Disc Diameter |
203mm（customizable Ø230,Ø250） |
|
Control mode |
Dual discs and dual controls |
|
Rotating Speed |
50-600 rpm (stepless speed changing), and 150 / 300 rpm (two-level constant speed) |
|
Working disc rotation direction |
Clockwise and counter clockwise |
|
Motor |
550W*2 |
|
Dimensions and Net weight |
566*712*270mm,50kg |
|
Package size and Gross Weight |
758*776*421mm,64kg |
|
Power supply |
Single-phase 220V,50HZ |
