Applications

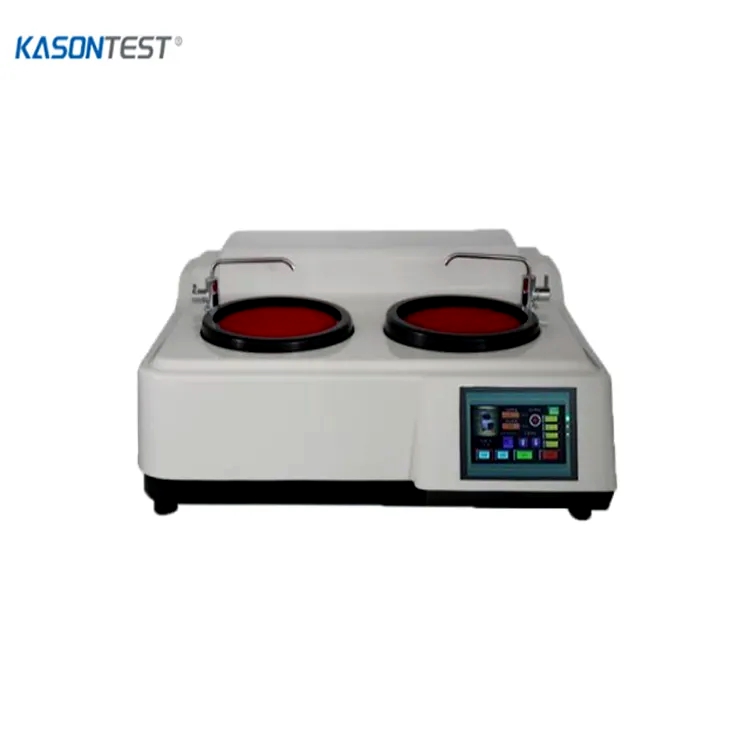

Mopao2T touch screen type Metallographic specimen grinding and polishing machine which is equipped with double discs and features stepless speed changing. It can realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. This machine features easy operation and economical applying. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Features
● Touch type LCD screen operation. Rotating speed is displayed on LCD directly.
● Grinding and polishing time is adjustable from 0 to 1000 seconds
● There are two working conditions for this model: the stepless speed changing status or four-level constant speed status. The working condition can be switched from one to another easily.
● The rotating direction of working disc can be chosen at will.
● Four-level constant speed: 150, 300, 600, 800 rpm.
● Stepless speed changing from 50 to 1000 rpm.
● This model is designed and manufactured as per international advanced specimen preparing technology.
● Equipped with beautiful appearance machine shell and stainless steel parts which never rust.
Technical Parameters
|
Model |
KASON Mopao2T |
|
Grinding Disc Diameter |
203mm（customizable Ø230,Ø250） |
|
Rotating Speed |
50-1000 rpm (stepless speed changing), or 150 / 300 / 600 / 800 rpm (four-level constant speed) |
|
Diameter of working disc |
200mm / 250mm |
|
Motor |
550W*2 |
|
Dimensions and Net weight |
870*760*370mm,45kg |
|
Package size and Gross Weight |
980*920*470mm,84.8kg |
|
Power supply |
Single-phase 220V,50HZ |
