Applications

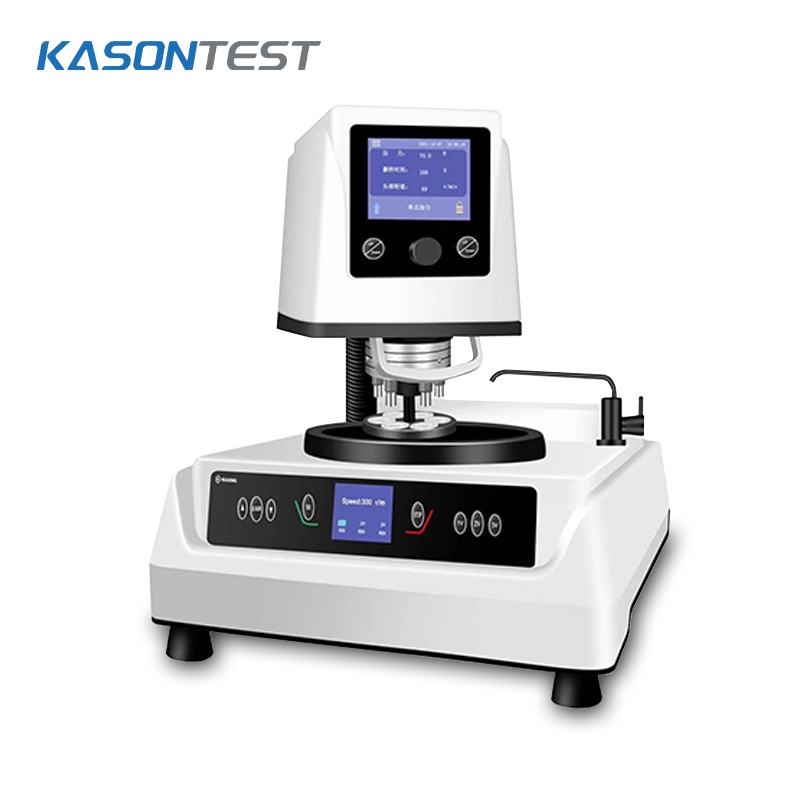

Mopao4 automatic grinding and polishing machine is a single table grinding and polishing machine. According to international standards and using international advanced technology, a new type of grinding and polishing equipment with single-point force is developed and manufactured. (No electronic proportional valve, manual pressure regulation)
Features
● Electronic lock head
● Pneumatic version automatic grinding head
● Integral moulding of high-strength FRP material shell, sturdy and durable, never rusty.
● The faucet adopts copper material, which has good corrosion resistance
● Stepless speed design, low noise, stable working performance. Can meet meet a variety of needs.
● With water cooling system
Technical Parameters
|
Model |
KASON Mopao4 |
|
Grinding Disc Diameter |
Ø250mm (Ø230mm, Ø300mm can be customized) |
|
Grinding and polishing disc speed |
50-1000 rpm (stepless speed regulation) and 300/600/900 rpm (3-level fixed speed) |
|
Grinding and polishing disc steering |
adjustable forward and reverse selection |
|
Grinding and polishing head speed |
5-150 rpm (stepless speed regulation) |
|
Number of prepared samples |
4 pcs |
|
Input air source |
0.4-0.7Mpa |
|
Sample preparation pressure |
20-70N single point and 0-300N center. |
|
Sample preparation time |
0-3000S |
|
Sample diameter |
Standard Ø30mm (can be customized with diameters Ø22-Ø45mm) |
|
Dimensions and net weight |
550*760*640mm, 60kg |
|
Package Size and Gross weight |
870*640*770mm,82kg |
|
Power supply |
1.1KW, Single phase 220V, 50HZ |
