Applications

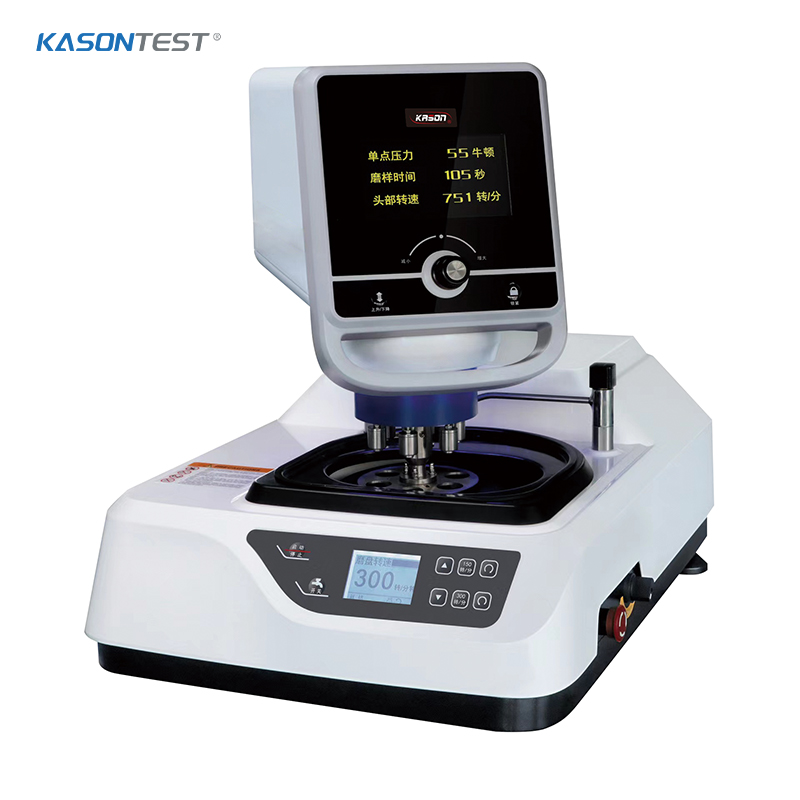

The KASON Mopao5 automatic grinding and polishing machine is a single-disc desktop machine, which is an integrated machine with central force pressurization and single-point pressurization. It is a new generation of high-precision, automated sample preparation process grinding and polishing equipment manufactured in accordance with international standards and using international advanced technology.
Features
● Electronic lock head, press one key can lock the head, easy operation;
● Pneumatic version automatic grinding head, one time can process 6 pieces of samples.
● Integral moulding of high-strength FRP material shell, sturdy and durable, never rusty.
● The faucet adopts copper material, which has good corrosion resistance
● Stepless speed design, low noise, stable working performance. Can meet meet a variety of needs.
● With water cooling system
Technical Parameters
|
Model |
KASON Mopao5 |
|
Grinding Disc Diameter |
Ø250mm (Ø230mm, Ø300mm can be customized) |
|
Grinding and polishing disc speed |
50-1000 rpm (stepless speed regulation) and 300/600/900 rpm (3-level fixed speed) |
|
Grinding and polishing disc steering |
adjustable forward and reverse selection |
|
Grinding and polishing head speed |
5-150 rpm (stepless speed regulation) |
|
Number of prepared samples |
6 pcs |
|
Loading range |
Single point 20-70N, center 150-300N |
|
Sample preparation time |
0-3000S |
|
Sample diameter |
standard Ø30mm (can be customized with diameters Ø22- Ø45 mm) |
|
Dimensions and net weight |
750*590*720mm, 62kg |
|
Packing Dimensions and gross weight |
870*640*770mm,82kg |
|
Power supply |
1.1KW, Single phase 220V, 50HZ |
