Applications:

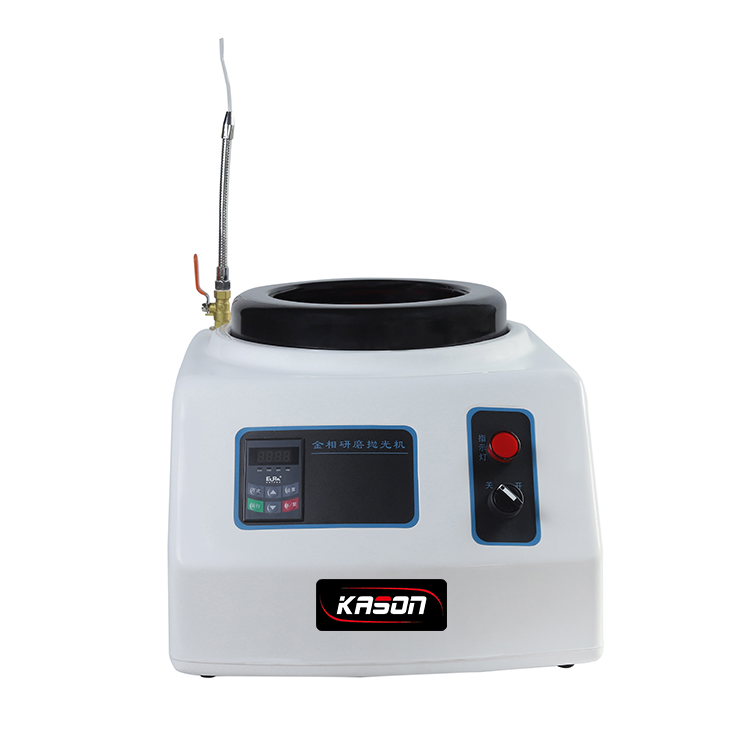

KASON MP-1B Metallographic specimen grinding & polishing machine is equipped with single disc and features stepless speed changing grinding and polishing. The rotating speed of grinding and polishing disc is adjustable from 50 to 1000 rpm. It can realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. This machine features easy operation and economical applying. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Features
● Stepless speed regulation, speed regulation control system optimized for grinding and polishing machines
● Easy-to-operate switches and knobs, LED digital display speed, simple operation
● Finely ground and surface-treated work disc to ensure smooth sample surface
● The integrally formed high-strength fiberglass material shell is sturdy and durable and will never rust.
Technical Specifications
|
Model |
KASON MP-1B |
|
Polishing disc diameter |
Ø203mm (Ø230mm customized) |
|
Number of grinding and polishing discs |
Single disk |
|
Rotating speed |
50-1000rpm |
|
Motor |
180W |
|
Dimension and Net weight |
380*520*420mm,15kg |
|
Package size and Gross weight |
465*575*538mm,24.1kg |
|
Voltage |
220V, 50Hz, Single phase |
