Applications:

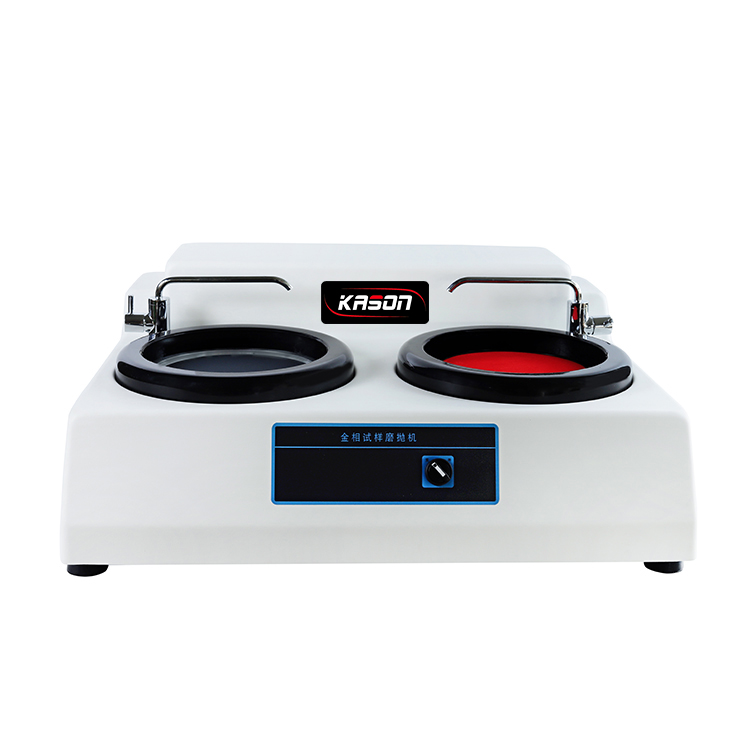

KASON MP-2 Metallographic specimen grinding & polishing machine is equipped with double discs, and it can finish grinding or polishing with two different speeds. The rotating speed of left disc (pre-grinding disc) is 450 rpm and right disc (polishing disc) is 600 rpm. With double disc and different grinding and polishing materials, it can realize the process of rough grinding, fine grinding, rough polishing and finishing polishing. This machine features easy operation and economical applying. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Features
● 450 rpm/600 rpm, speed control system optimized for grinding and polishing machines
● Easy-to-operate switches and knobs for easy operation
● Finely ground and surface-treated work disc to ensure smooth sample surface
● Integrated high-strength ABS material shell, sturdy and durable.
Technical Specifications
Model
KASON MP-2
Polishing disc diameter
Ø203mm (Ø230mm/Ø250mm customized)
Structure
Double disk
Rotating speed
Grinding disc rotating speed:450 rpm;
Polishing disc rotating speed:600 rpm
Motor
370W
Dimension and Net weight
566*712*270mm,42.5kg
Package size and Gross weight
758*776*421mm,55.85kg
Voltage
220V, 50Hz, Single phase
