Applications

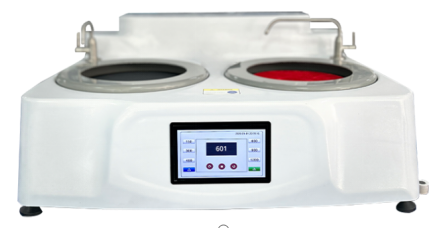

MP-2BT Metallographic specimen grinding & polishing machine is equipped with double discs and features stepless speed changing grinding and polishing. It can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. By adjusting the transducer, it can realize the rotating speed of grinding and polishing disc adjustable from 50 to 1200 rpm. This bring this machine with much more extensive applying and make it become the necessary metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Features
● Speed between 50-1200 rpm and six levels of customization, making the machine more widely applicable.
● Touch screen operation, simple operation
● Real-time display of grinding and polishing disc speed
● Finely ground and surface-treated work disc to ensure smooth sample surface
Technical Specifications
Model
KASON MP-2BT
Grinding Disc Diameter
203mm（customizable Ø230,Ø250）
Structure
Double disk
Rotating speed
Stepless speed: 50-1200 rpm,Six-level fixed speed: 150 rpm, 300 rpm,450 rpm, 600 rpm, 900 rpm, 1200 rpm
Motor
550W
Dimensions and Net weight
566*712*270mm,40kg
Package size and Gross Weight
758*776*421mm,53kg
Voltage
220V, 50Hz, Single phase
