Applications

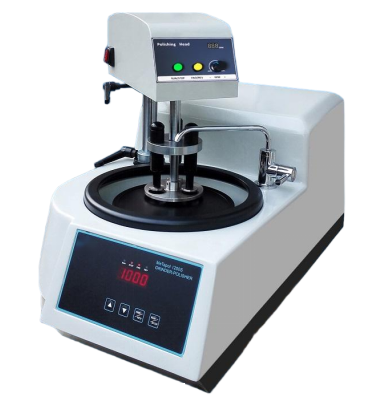

This MPS polishing and grinding head is designed according to investigation and researches on the market and customers’requirements. MPS features stepless speed changing and it can prepare one, two or three samples at one time. It can be fixed onto many models of polishing and grinding machines produced by us, It is easy-to-use, and the quality of finished sample is high. MPS is an ideal option for the lab of factories, science and research institutions and universities, which can prepare sample by unmanned operation and increase the efficiency.
Technical Parameters
|
Model |
KASON-MPS |
|
Rotate Speed |
50-200 rpm |
|
Sample Force |
0~40N |
|
Sample Capacity |
1~3 PIECES |
|
Dimension and Weight |
183*209*252mm,13kg |
|
Packing size and Gross weight |
400*300*550mm,18kg |
|
Power Supply |
Single phase, 220V, 50Hz or three phases, 380V, 50HZ |
