Main features:
Abstract:

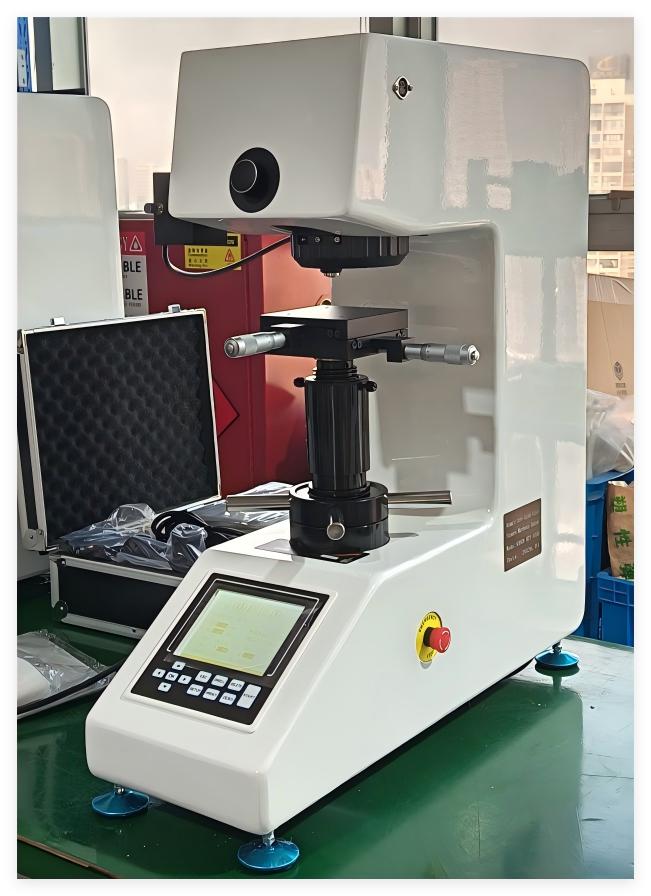

Metallographic Hardness Tester is a core tool in materials science and precision manufacturing, integrating Hardness Testing and metallographic analysis.
Application:
1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
2. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
3. Glass, chip and ceramic material.
Fully compliant with global & domestic Testing standards:
International Standards: ISO 6507-1:2023: Specifies the Test method for Vickers hardness of metallic materials.·
ISO 6507-2:2018: Regulates the verification and calibration of Vickers Hardness Testing machines
Domestic Standards (China):
GB/T 4340.1-2024: Specifies the test method for Vickers hardness.
GB/T 4340.2-2012: Regulates the verification and calibration of Vickers hardness Testing machines.
JJG 151-2006: Verification regulation for metallic Vickers Hardness Testers.TM E92-23: Covers the test methods for Vickers hardness of metallic materials.
Features:
1.The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple Microscope with adjustable brightness and comfortable vision.
2.Cast aluminum shell molding, the structure is stable and not deformed, high-grade automotive paint, anti-scratch ability, use for many years is still bright as new.
3.On the industrial display screen, the hardness value can be visually displayed, the hardness can be converted, the test method, the test force, the time of the charge and the number of measurements, and the test process can be intuitively understood.
4.It adopts a closed-loop loading control system with high test force accuracy and good repeatability and stability of the indicated value.
5.Large LCD screen display.
6.Observation - test - measurement of the position switch by the automatic turret
7.Built-in printer; direct printing of test results and test data;
Main configuration:
Test force:1kg(9.8N), 5kg(49N), 10kg(98N), 20kg(196N), 30kg(294N), 50kg(490N)
Loading control:Automatic (load/hold/uninstall)
Test mode:HV/HK
Objective lens and indenter switch:Automatic switching
Measurement multiple:Both 10X and 40X can be measured with double objective lens
Hardness test range:(5-3000)HV
Warranty and After-sales service:
1.1 year warranty for machine host , elimination of manual interference.
2.English manual and Video for machine using and maintenance.We offer free training in our factory, welcome to visit and learn more about our machines.
3.Free accessories :Software , instruction manual, USB control in warranty time，buyers bear the shipping cost.
We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.
FAQ:
1,Q:Why you choose us?
A: Jinan Kason Testing Equipment CO.,LTD is a professional company over 16years experience.
2, Q: What is the delivery time?
A: 5 to 7 working days.
3,Q: What is your payment terms?
A: 100% TT in advance, or 30% TT in advance, 70% balance
4, Q: What is the shipping method?
A: By air or by ship.
