Main features:
Application:

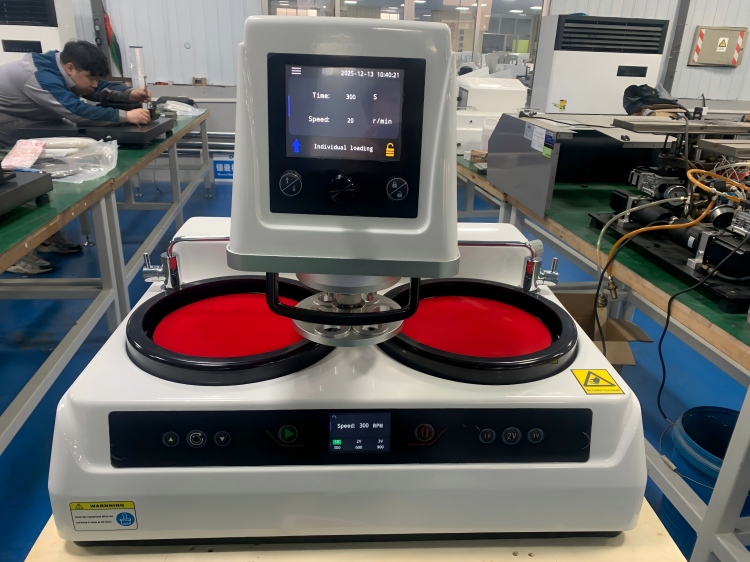

The automatic grinding and polishing machine is a double-disc desktop grinding and polishing machine. According to international standards, it adopts international advanced technology to develop and manufacture a new type of grinding and polishing equipment with single-point force addition. (No electronic proportional valve, manual pressure regulation) .
Key Features (with visual highlights)
1. Adjustable Rotation & Quick Disc Change
Select rotation direction freely and swap grinding/polishing discs quickly.
2. Multi-Sample & Single-Point Pneumatic Loading
Prepare up to 6 samples simultaneously with precise single-point pressure.
3. Microprocessor-Controlled Speed & Pressure
Stepless adjustment of disc and head speed, intuitive pressure and time settings.
4. Wide Applicability
Supports rough/fine grinding and polishing for metals, alloys, ceramics, and composites.
5. Stable & Safe Operation
Low noise, cast aluminum base for rigidity, fiberglass casing, and stainless steel components.
6. Integrated Water Cooling System
Prevents sample overheating, protects microstructure, and flushes away debris.
7. Easy Cleaning & Maintenance
Anti-corrosion, anti-rust design with simple cleaning process.
8. Compact Desktop Design
Space-saving for laboratories, universities, and research institutions.
Technical Highlights
· Disc Diameter: φ250mm (customizable φ230–φ300mm)
· Disc Speed: 50–1000 r/min (stepless) / 3-level fixed 300/600/900 r/min
· Head Speed: 5–150 r/min (stepless)
· Sample Capacity: 6 pcs
· Loading Range: 0–0.7 MPa adjustable
· Sample Size: Standard φ30mm (customizable φ22–φ45mm)
· Power Supply: 1.1 KW, 220V, 50Hz
Certification & Standards
·ISO 9001, CE certified·Comply with ASTM E4, ISO 7500-1, ISO 6892 and dozens of international and domestic Testing standards·Fully meet third-party certification, factory daily inspection and engineering project acceptance requirements
FAQ:
1,Q:Why you choose us?
A: Jinan Kason Testing Equipment CO.,LTD is a professional Testing machine company over 19 years experience.
2, Q: What is the delivery time?
A: 5 to 7 working days.
3,Q: What is your payment terms?
A: 100% TT in advance, or 30% TT in advance, 70% balance
4, Q: What is the shipping method?
A: By air or by ship.
5,Q: How many year warranty?
A: 1 year
Pls contact with us: admin@jnkason.com, whatsapp: +159 1008 1986
