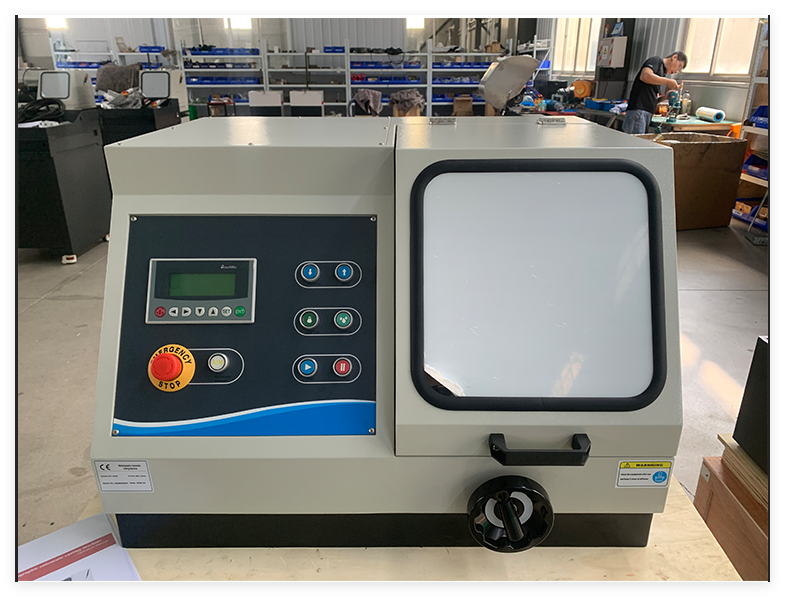

What is Metal Specimen Metallographic Sample Cutting Machine?

Main features:

Applications

1. Suitable for cutting round workpieces with a diameter ≤ 80 mm.
2. Capable of cutting rectangular samples with height 80 mm and depth ≤ 200 mm.
3. Ideal for cutting large workpieces and special‑shaped workpieces.
4. Essential sample preparation equipment for Metallographic experiments in colleges, universities, factories and enterprises.
5. Applicable to both metal and non‑metal workpiece cutting.

Features

1. The shell is plastic‑sprayed, with beautiful appearance and good corrosion resistance.
2. Three‑channel water cooling system prevents overheating and tissue burning of samples.
3. Supports two operation modes: manual cutting and automatic cutting.
4. Provides two cutting methods: intermittent cutting (for metal) and continuous cutting (for non‑metal).
5. Large cutting chamber for convenient operation and large workpiece processing.
6. Equipped with movable T‑shape worktable and separate vice for easy clamping of various workpieces.
7. High‑definition backlight LCD screen displays various cutting data.
8. Non‑burning loss swing cutting mode improves cutting quality.
9. Automatic withdraw function after cutting and automatic reset function.
10. Bidirectional feeding increases deep cutting length.
11. Large 50L cooling liquid tank with automatic cooling system.
12. Cutting speed and infeed distance can be set as required.

Technical Parameters of KSCUT-80Z Metallographic Sample Cutting Machine

1. Basic Parameters

2. Operating Parameters

3. Cooling System
