Main features:

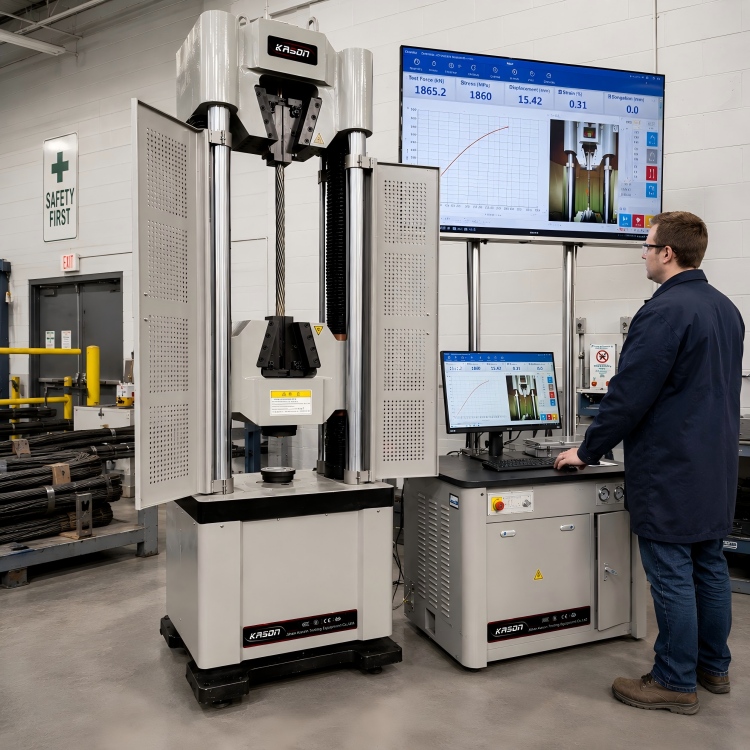

One of Australian customer bought our steel strand tensile Testing machine , and share their using photo to us.
Mechanical Parameters:
Number of columns: 6 (4 columns + 2 screws)
Load capacity: 1000 kN (100,000 kgf)
Calibration standard: ISO 7500, Class 0.5
Testing load accuracy:±0.5%
Load measuring range: 1%–100% FS
Load resolution: 1/500,000 FS
Stress rate control accuracy:±0.5%
Deformation measuring range: 1%–100% FS
Deformation resolution:±1/500,000 FS of max deformation
Deformation accuracy:≤ ±0.5% of indicating value
Displacement resolution: 0.0025 mm
Displacement accuracy:≤ ±0.5% of indicating value
Overload protection:≥5% of full range
Testing Space & Dimensions:
Max tensile testing space: 1350 mm (including grip)
Max compression testing space: 1000 mm (including grip)
Distance between columns: 580 mm
Max piston stroke: 250 mm
Testing speed: 0–100 mm/min
Load frame dimension: 860×740×2600 mm
Oil power unit dimension: 1200×680×750 mm
Weight: 2750 kg
Power supply: 3-phase, AC 380V±10%, 50Hz
Operating temperature: 0–38°C (32–100°F)
Humidity range: 10%–90% non-condensing
Power consumption: 2.75 kW
If you want more details, pls tell us. +86 15910081986
