Main features:

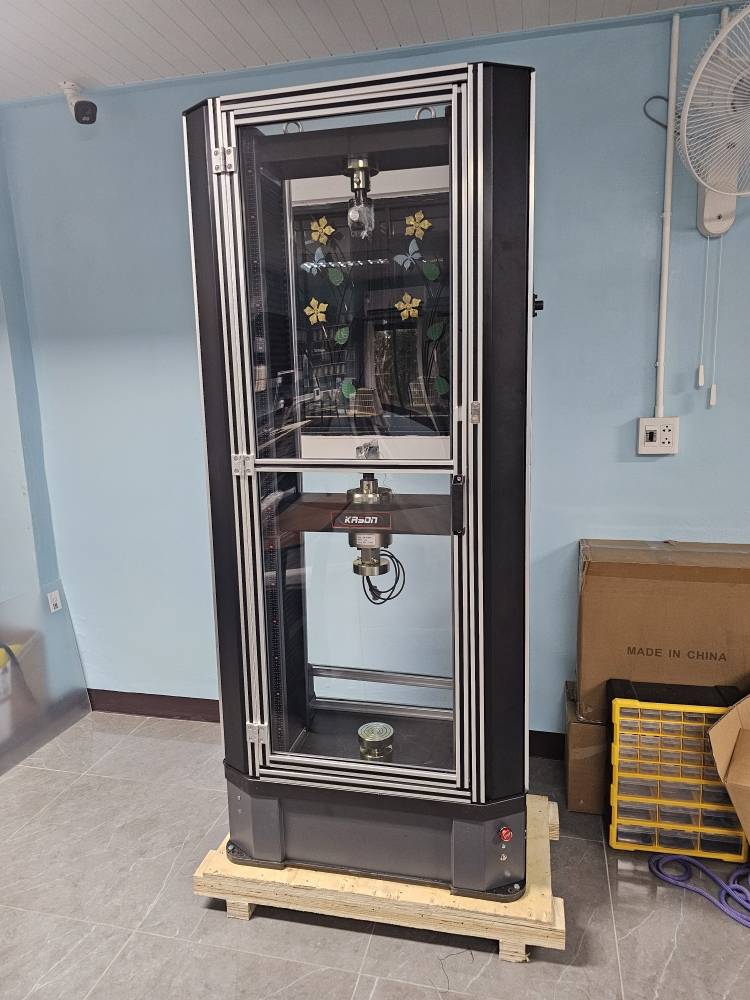

Thanliand customer received the 50kn electronic tensile Testing machine, machine is in good condition and they use it well. The machine can do tensile, compress ,shear etc Test. They share us the machine photos and video after they received it.
The 50kn machine configuration as follows :
Model: KASON-ETM504T
Load Capacity: 50 kN
Calibration Standard: Class 0.5 according to ISO 7500-1, meets ASTM E4 requirements
Load Accuracy: ±0.5%
Load Measurement Range: 0.4% – 100% FS
Load Resolution: 1/500,000 FS
Deformation Measuring Range: 0.2% – 100% FS
Deformation Accuracy: ≤ ±0.5%
Deformation Resolution: 1/±500,000 FS of maximum deformation
Position Accuracy: Within ±0.5% of indicated value
Displacement Resolution: 0.04 μm
Crosshead Speed Range: 0.001 – 1000 mm/min
Crosshead Speed Accuracy: ±0.5% of set speed
Crosshead Travel: 1100 mm
Maximum Tensile Test Space: 770 mm
Maximum Compression Test Space: 770 mm
Effective Test Width: 450 mm
Compression Platen Diameter: Φ100 mm
Position Limit Protection: Upper and lower limit switches
Power Supply: 0.75 kW, AC 220V ±10%, 50/60 Hz
Overall Dimensions (L × W × H): 850 × 585 × 1824 mm
Machine Weight: 420 kg
If you have interest, pls contact with us. +86 159 1008 1986
