Main features:

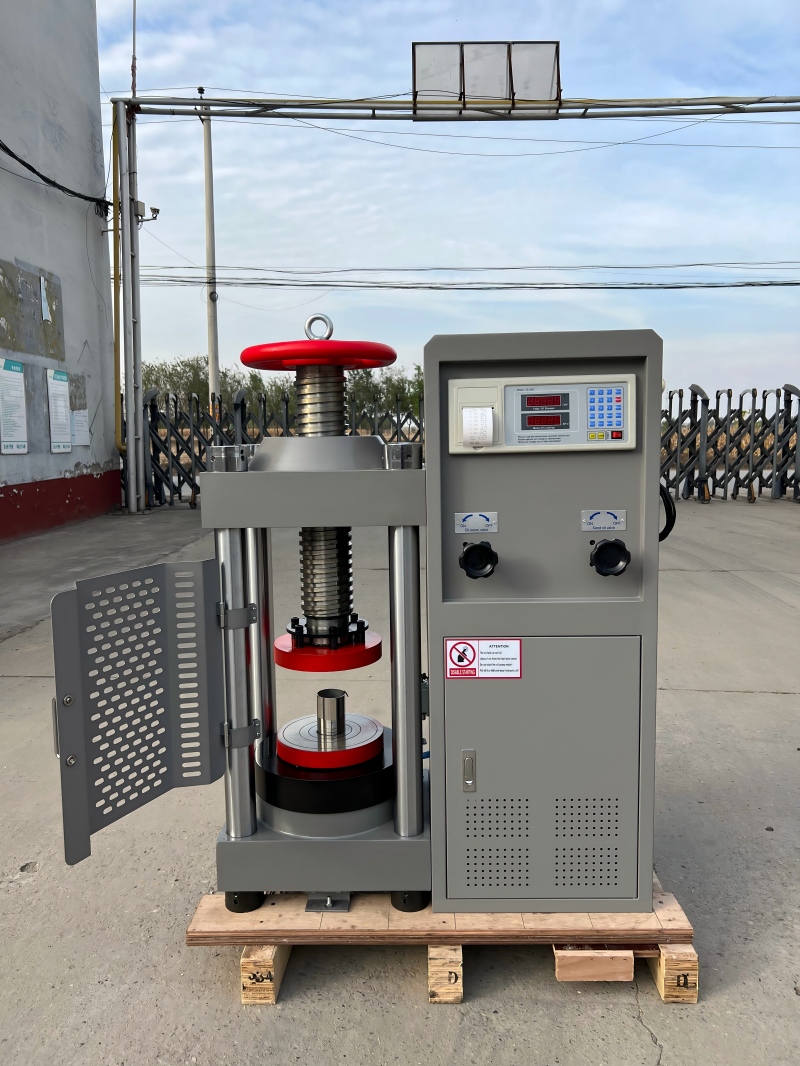

The machine features a2000kN (200Ton) maximum load capacity, high-precision compression sensor, LCD digital display, and reliable hydraulic loading system. WithClass 1 accuracyand a minimum resolution of0.01kN, it ensures stable and precise Test results. The manual-adjust Testing space,30mm piston stroke, and220×250mm Compression Platensprovide flexible operation for different specimen sizes.
Main Parameters:
- Max. Load: 2000kN/200Ton
- Accuracy Class: Class 1
- Resolution: 0.01kN
- Piston Diameter: 250mm
- Platen Distance: 320mm
- Power Supply: 0.75kW, AC380V, 50Hz, 3 Phase
- Display: LCD Digital Display
- Weight: 600kg
The machine supports cube specimens (100×100×100mm, 150×150×150mm) and cylinder specimens (100×200mm, 150×300mm, 160×320mm). It is designed according to international compression testing requirements, includingASTM C39, ASTM C109, EN 12390-3, and ISO compression testing standards, making it suitable for global construction material testing applications.
