Main features:

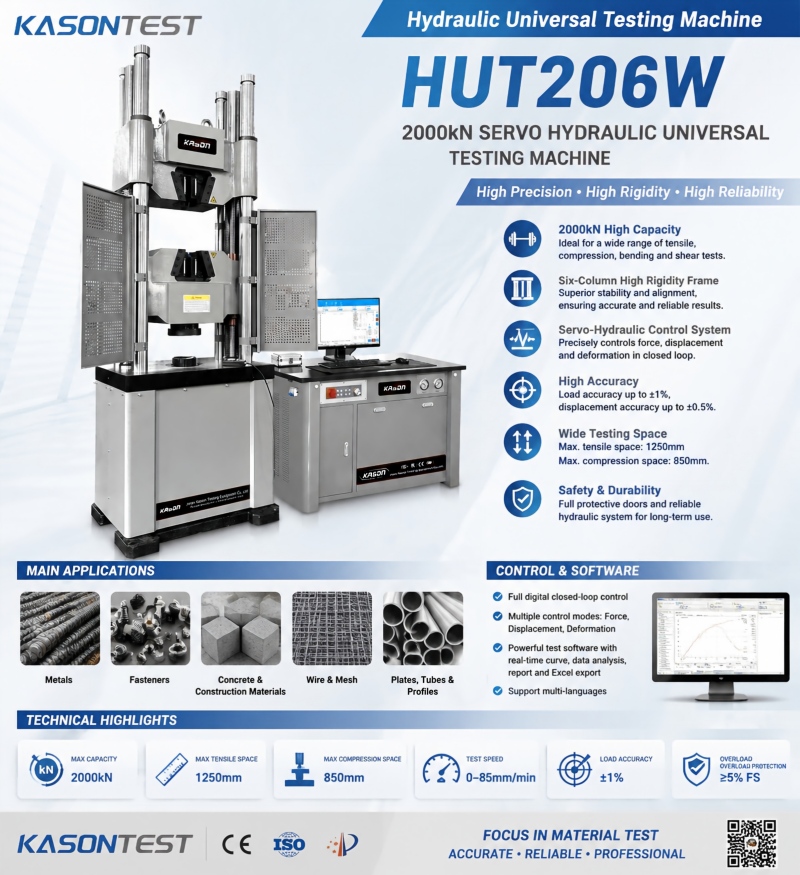

KASON HUT206W 2000kN Servo Hydraulic Universal Testing Machineis a newly developed high-precision Testing solution designed for demanding material strength evaluation. Complying withISO 7500-1 calibration standards, this machine provides accurate and reliable testing performance for metals, fasteners, construction materials, tubes, plates, wires, and other industrial components.
Equipped with a rigid six-column frame and advanced electro-hydraulic servo control technology, the HUT206W ensures excellent stability, precise force control, and closed-loop operation for tensile, compression, bending, and shear tests. The high-precision Load Cell achievesClass 0.5 accuracy according to EN ISO 7500-1, while the system supports force, deformation, and displacement control modes.
Main Features:
- 2000kN maximum load capacity for heavy-duty material testing
- Six-column high-rigidity structure for improved alignment and durability
- Servo-hydraulic control system with real-time data acquisition
- Hydraulic automatic wedge grips for fast and safe specimen loading
- Computer-controlled testing software with curve analysis and report generation
Key Parameters:
- Max. tensile testing space: 1250mm
- Max. compression testing space: 850mm
- Load accuracy: ±1%
- Displacement resolution: 0.0025mm
- Testing speed: 0–85mm/min
- Overload protection: ≥5% full scale
