Main features:
Keywords:Electro-hydraulic Servo Testing System, Fatigue Test machine, Dynamic Mechanical Testing, Tensile Test, Fracture Mechanics, ASTM Standards, Material Testing Equipment.

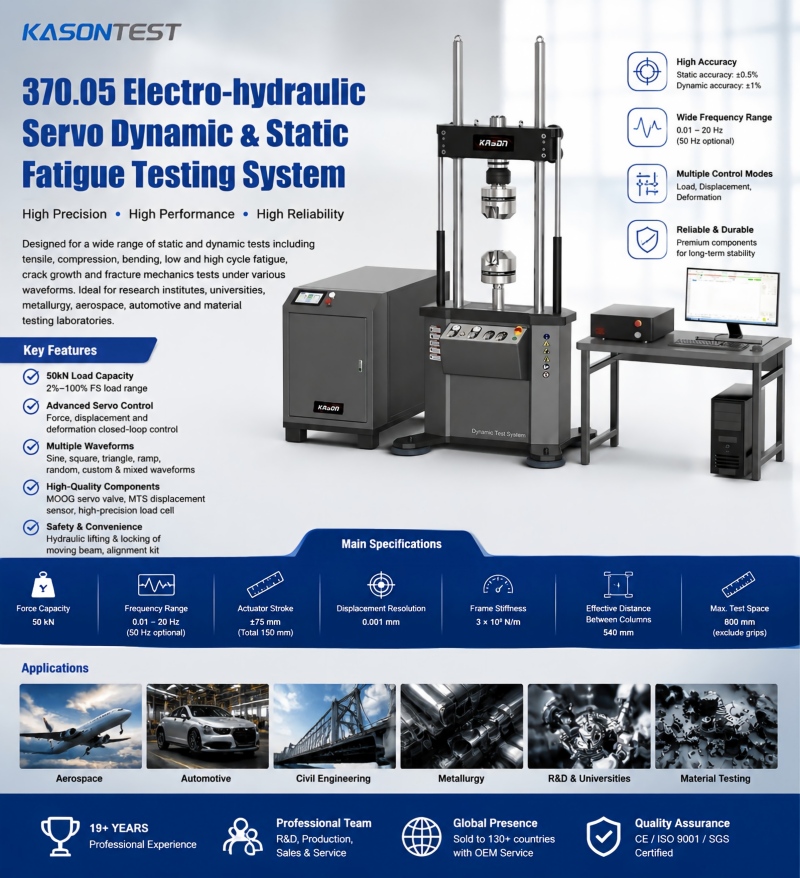

The machine is a high-performance testing solution designed for accurate static and dynamic mechanical property evaluation of metals, non-metallic materials, and components. The system is widely suitable for research institutes, universities, aerospace, automotive, metallurgy, and material testing laboratories.
Equipped with advanced electro-hydraulic servo technology, the machine performs tensile, compression, bending, low-cycle fatigue, high-cycle fatigue, crack growth, and fracture mechanics tests under various waveforms, including sine, square, triangle, ramp, and customized waveforms.
The KASON 370.05 features a50 kN load capacity,±75 mm actuator stroke (150 mm total),0.01–20 Hz frequency range (50 Hz optional),0.001 mm displacement resolution, and±0.5% static accuracy / ±1% dynamic loading accuracy. It adopts a MOOG servo valve, MTS displacement sensor, high-precision Load Cell, and digital closed-loop control technology for reliable testing performance.
The system complies with major testing standards, includingGB/T 2611-2007,GB/T 16826-2008,GB 3075,JB/T 9379-2002,GB/T 228-2010,EN10002,ASTM E399-09, andASTM E1820for tensile, fatigue, and fracture toughness testing.
