Main features:
The impact machine is a high-performance solution designed for evaluating the impact resistance and toughness of metal materials under dynamic loading conditions. The machine is widely applied in laboratories, research institutes, and quality control departments for accurate Charpy impact testing.

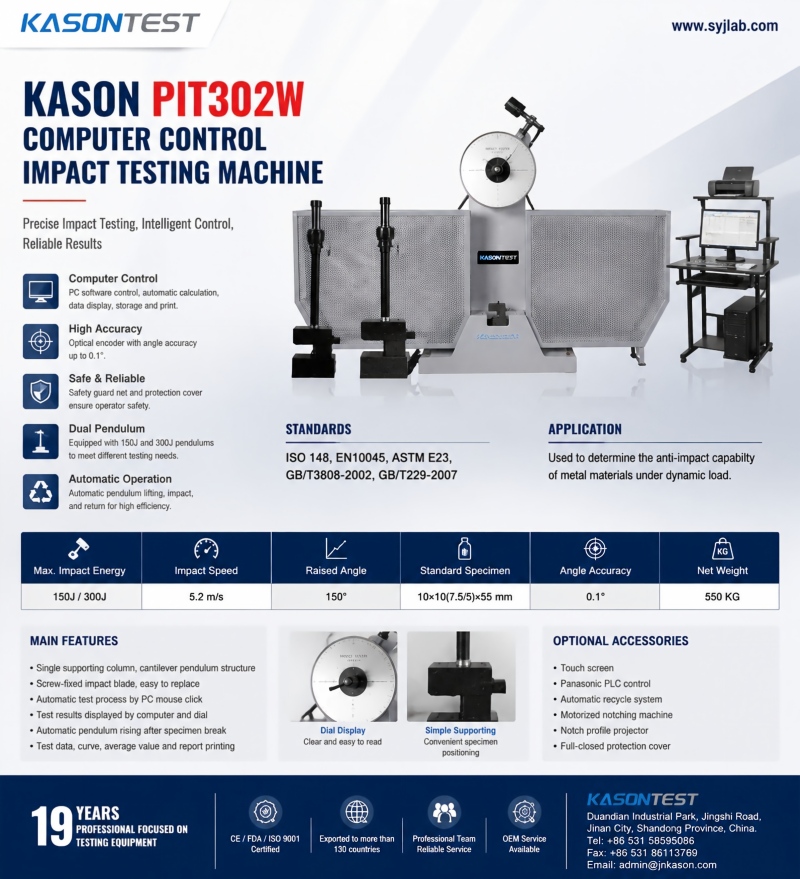

Equipped with advanced computer control software, the PIT302W can automatically perform pendulum lifting, impact Testing, data acquisition, calculation, storage, and report printing. The system captures impact energy loss, impact toughness, and Test results with high efficiency and reliability.
Key Features:
- Computer-controlled operation with automatic data processing and reporting
- Dual pendulum design with150J and 300J impact energy options
- High-precision optical encoder for accurate angle measurement
- Automatic pendulum return and efficient testing workflow
- Safety protection guard and reliable specimen support structure
Main Parameters:
- Maximum impact energy:150J / 300J
- Impact speed:5.2 m/s
- Raised angle:150°
- Standard specimen size:10×10×55 mm (7.5/5 mm optional)
- Angle accuracy:0.1°
- Net weight:550 kg
