Main features:
Keywords:Hydrostatic Blasting Tester, Plastic Pipe Testing, Pressure Burst Test, Constant Pressure Test, Thermoplastic Pipe, PC Control System, ISO 1167, ASTM D1599.

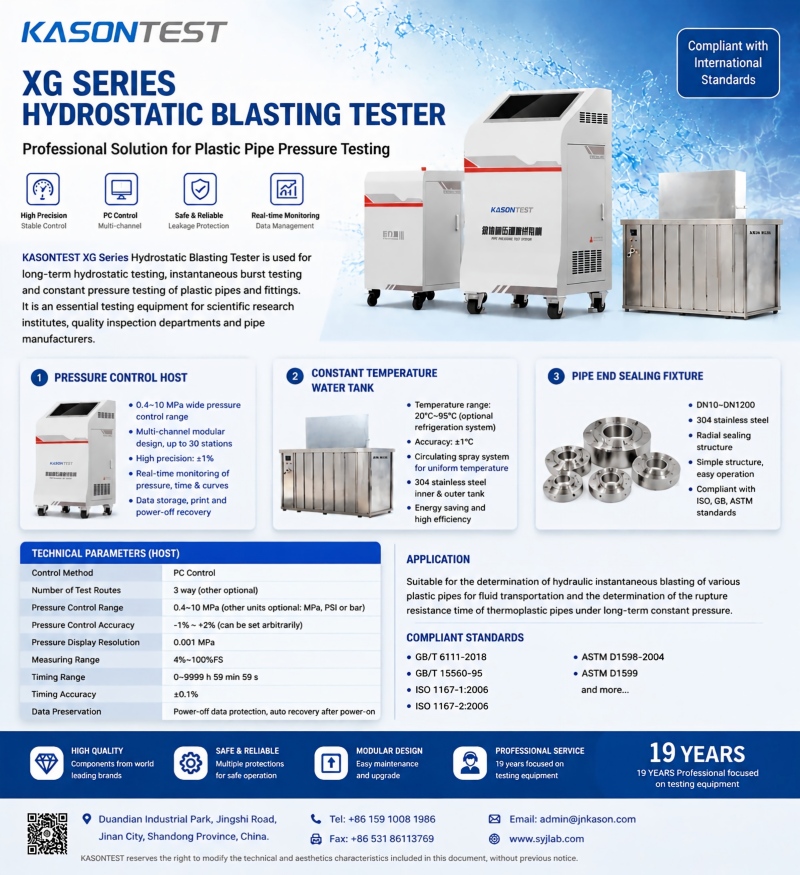

The Hydrostatic Blasting Tester, a professional testing solution designed for plastic pipe manufacturers, research institutes, and quality inspection departments. The equipment is used forHydrostatic Pressure Testing, instantaneous burst testing, and long-term constant pressure failure resistance testingof thermoplastic pipes and fittings.
Featuring aPC-controlled multi-channel system, the tester provides real-time monitoring of pressure, time, and temperature curves, with functions including test data storage, printing, power-off data recovery, and automatic rupture identification. Its modular design allows flexible expansion, with up to 30 control modules and independent station operation for efficient laboratory testing.
Key Parameters:
- Test pipe diameter range:D16–1000 mm
- Test routes:3 channels (optional expansion)
- Pressure control range:0.4–10 MPa
- Pressure display resolution:0.001 MPa
- Timing range:0–9999 h 59 min 59 s
- Control method:PC Control
The system complies with major international testing standards, includingGB/T 6111-2018, GB/T 15560-95, ISO 1167-2006, ASTM D1598-2004, and ASTM D1599, ensuring accurate and reliable evaluation of plastic pipe performance.
