Main features:

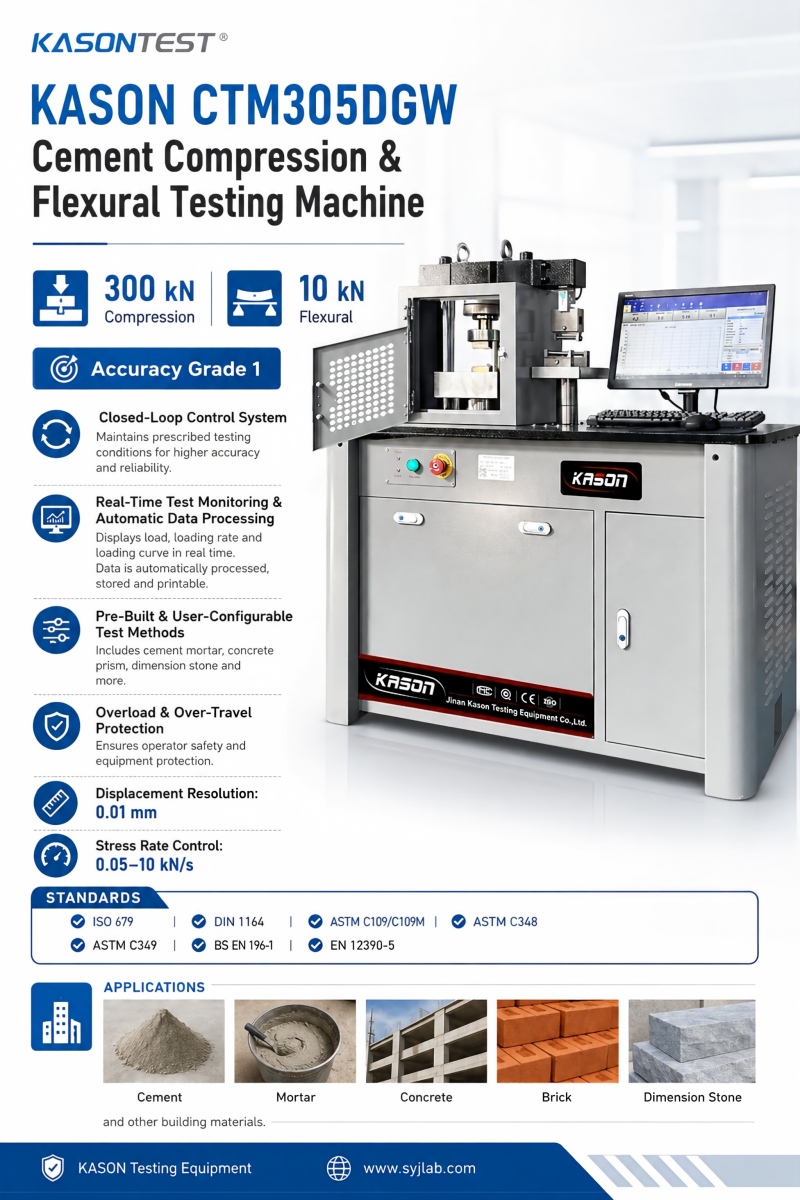

the Cement Compression & Flexural Testing machine, an advanced solution designed for mechanical property Testing of cement, mortar, brick, concrete, and other construction materials. The machine adoptsservo motor acceleration and deceleration control technology, providing precise load control, real-time loading curve display, automatic data processing, storage, and report printing.
Featuring aclosed-loop control system, the CTM305DGW continuously monitors Testing conditions and automatically adjusts the loading rate to ensure accurate results. Its compact design, oil-free drive system, low-noise operation, and high-intensity load frame make it ideal for modern laboratories. The system also supports pre-built test methods for cement mortar, concrete prism, and dimension stone testing, with overload and over-travel protection for operator safety.
With amaximum compression force of 300 kN,maximum flexural force of 10 kN,test accuracy Grade 1, and a displacement resolution of0.01 mm, the CTM305DGW delivers high-performance testing capability.
The machine complies with major international standards, includingISO 679, DIN 1164, ASTM C348, ASTM C349, ASTM C109/C109M, BS EN 196-1, EN12390-5, BS 1881:118, ASTM C78, C293, and AASHTO T97, ensuring reliable test results for global construction material applications.
Keywords:Cement testing Machine, Compression Test, Flexural Strength Test, Concrete testing Equipment, Servo Control System, ASTM Standards, ISO 679.
