Main features:

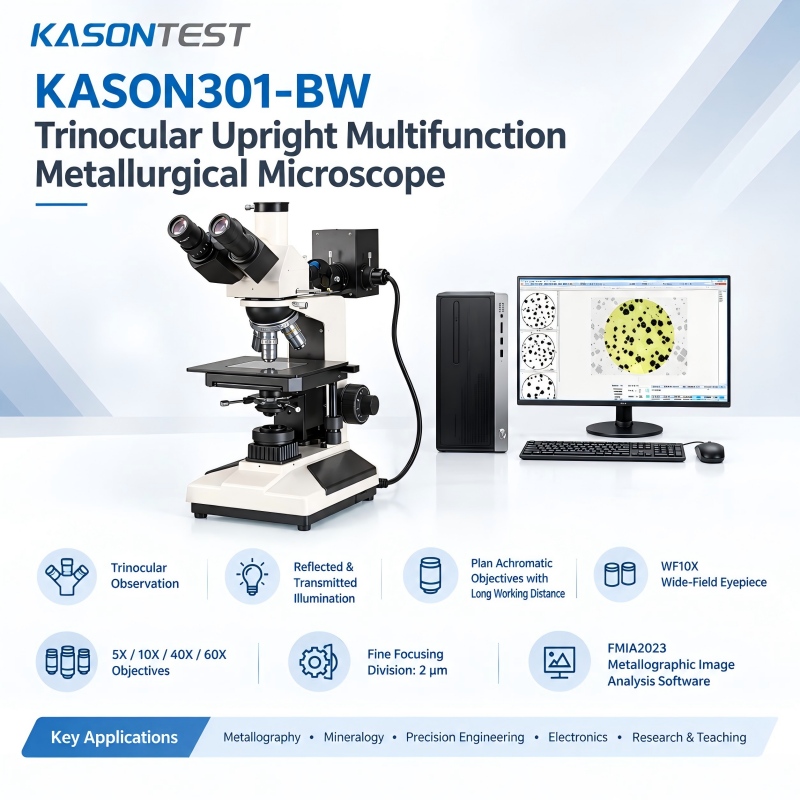

The Trinocular Upright Multifunction Metallurgical Microscope, designed for high-quality observation and analysis of both transparent and non-transparent materials. Withreflected and transmitted illumination, the system is suitable for metallography, mineralogy, precision engineering, electronics, scientific research, and teaching.
The Microscope featuresWF10X wide-field eyepieces,plan achromatic long-working-distance objectivesof5X/0.12, 10X/0.25, 40X/0.60 and 60X/0.75, and a trinocular observation system. Its coaxial coarse/fine focusing mechanism provides a minimum fine-focus division of2 μm. A6V 20W halogen lampwith brightness control supports clear illumination.
For digital analysis, the system integratesFMIA2023 Metallographic image analysis softwarewith a5-megapixel cameraand supports image measurement, automatic grading, comparison analysis, report generation, and Excel data export.
The software supports numerous Testing standards, includingGB/T 6394-2017for grain size,GB/T 10561-2005/ISO 4967:1998for non-metallic inclusions,ISO 4499-2016for cemented carbide microstructure, andASTM E45-2013for steel inclusion evaluation.
