Main features:

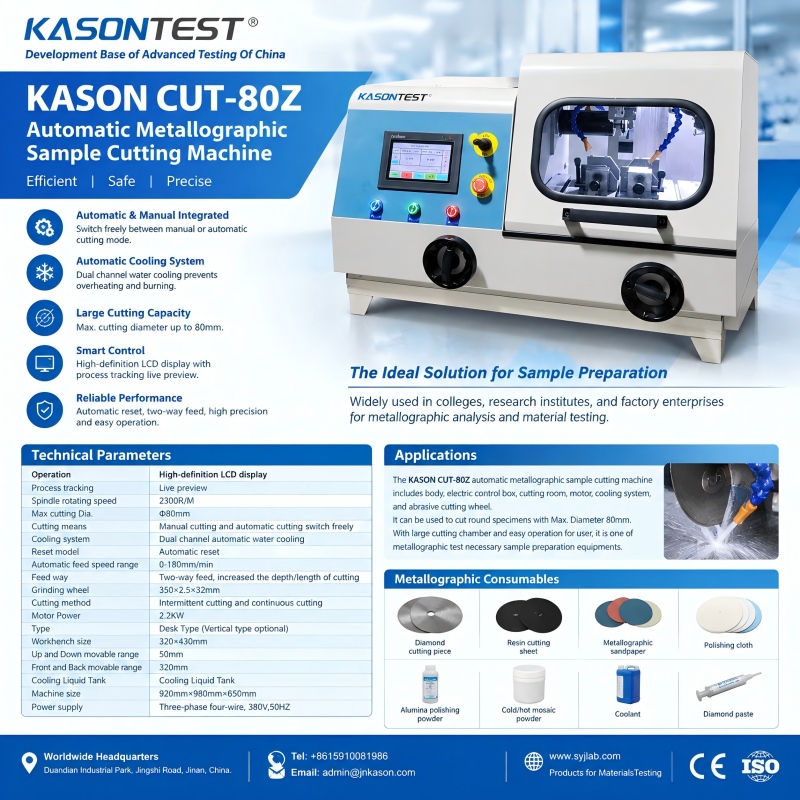

The Automatic Metallographic Sample Cutting Machineis designed for efficient and reliable sample preparation in colleges, research institutes, and industrial laboratories. It can cut round specimens with amaximum diameter of 80 mm, making it suitable for a wide range of metallographic applications.
The machine integratesmanual and automatic cutting modes, allowing users to switch freely according to Testing requirements. Itsdual-channel automatic water-cooling systemeffectively prevents sample overheating and burning during cutting. A high-definition LCD display withlive process trackingprovides convenient operation and monitoring.
Key parameters include aspindle speed of 2300 rpm, automatic feed speed of0–180 mm/min,two-way feed, a350 × 2.5 × 32 mm cutting wheel, and a2.2 kW motor. The worktable measures320 × 430 mm, while the up-and-down movement range is 50 mm.
Keywords:Automatic Metallographic Cutting Machine, Sample Preparation, Material Testing, Metallographic Analysis, Automatic Cooling, Precision Cutting.
